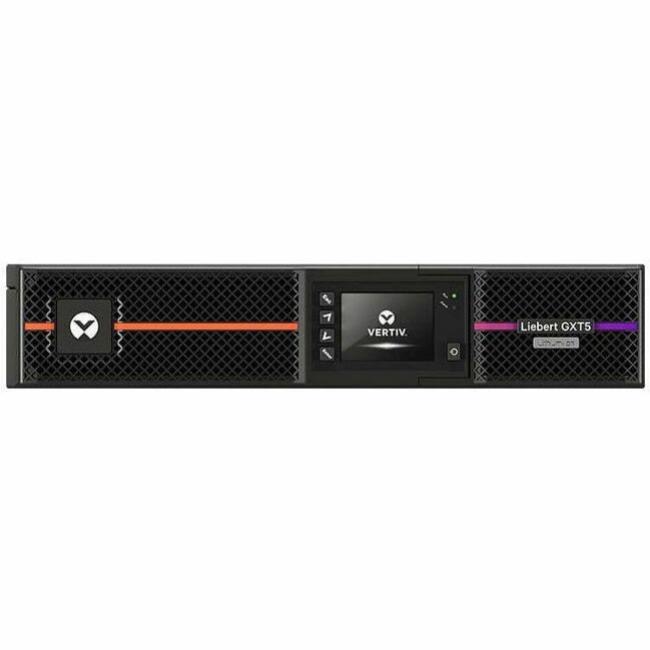

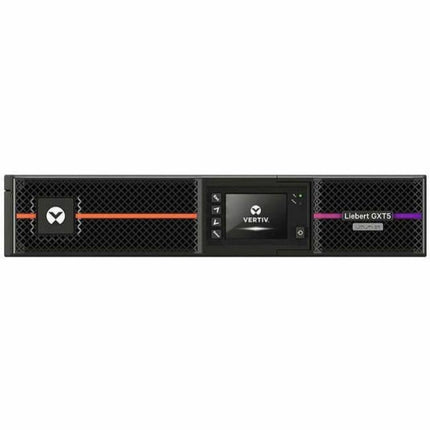

Vertiv Liebert GXT5LI 1000VA 1000W 230V Online Double Conversion UPS with Lithium-Ion Battery
The Vertiv Liebert GXT5 Lithium-Ion UPS provides the highest level of power conditioning and battery backup for critical IT systems. This 1000VA/1000W 230V online double conversion UPS protects servers, network equipment, and business-critical applications against power outages, surges, and disturbances with zero transfer time and pure sinewave output.
Why Choose the GXT5 Lithium-Ion UPS?
-
Advanced Lithium-Ion Battery Technology: Lasts up to 3 times longer than traditional VRLA batteries, reducing replacement frequency and total cost of ownership
-
Online Double Conversion Topology: Provides continuous power conditioning with zero transfer time to battery for maximum protection
-
Industry-Leading Runtime: Up to 14 minutes at full load ensures critical equipment stays online during unexpected power loss
-
Versatile Rack/Tower Design: Convertible form factor offers installation flexibility for server rooms, network closets, and edge IT locations
-
Hot-Swappable Batteries: User-replaceable batteries increase UPS lifespan without disrupting power to connected equipment
-
Superior Performance: Lithium-Ion batteries support up to 10 times more discharge cycles and faster recharge times compared to VRLA
Key Features
-
Power Rating: 1000VA / 1000W
-
Input/Output Voltage: 230V (200-240V configurable)
-
Topology: Online double conversion with pure sinewave output
-
Transfer Time: Zero milliseconds
-
Battery Type: Lithium-Ion with extended lifespan
-
Power Factor: 1.0 output power factor for maximum usable power
-
Energy Star 2.0 Certified: High efficiency operation reduces energy costs
Advanced Management & Connectivity
The GXT5 UPS features a colour LCD display with gravity sensing for easy local configuration and monitoring. The unit includes USB and serial ports for out-of-band management, with optional IntelliSlot network card enabling SNMP/web-based remote monitoring via Vertiv Power Insight software. Remote emergency shutoff capability provides added safety for fire suppression systems.
Superior Battery Technology
The Lithium-Ion battery technology delivers exceptional performance with better heat tolerance, up to 10 times more discharge cycles, and significantly faster recharge times compared to traditional VRLA batteries. The expected battery life is up to 3 times longer, which translates to fewer replacements, reduced maintenance costs, and lower total cost of ownership over the UPS lifespan.
Protection You Can Trust
This UPS protects against the widest range of power problems including surges, sags, brownouts, and complete power loss. Features include network-grade surge protection meeting ANSI C62.41 Category B standards, resettable circuit breaker protection, and automatic voltage regulation. The unit seamlessly switches to battery backup when input power quality falls outside acceptable operating levels.
Ideal Applications
- Server rooms and data centres
- Network equipment and closets
- Edge and distributed IT infrastructure
- Business-critical workstations
- Telecommunications equipment
- Security and surveillance systems
What's in the Box
- GXT5LI-1000GVRT2UXL 1000VA Rack/Tower UPS
- USB Type A to USB Type B Cable (1.8m/6ft)
- Adjustable 4-Post Rack Mounting Kit
- Support Base for Tower Configuration
- Quick Start Guide with Safety Instructions
- Power Assist and Power Insight software (free download)
Full Specifications
Power
| Output Power Rating |
1000VA / 1000W |
| Input Voltage |
200-240V AC (230V default) |
| Output Voltage |
230V AC ±1% |
| Output Power Factor |
1.0 |
| Topology |
Online Double Conversion |
| Transfer Time |
0 milliseconds (zero transfer time) |
| Waveform |
Pure Sinewave |
| Frequency |
50/60 Hz (auto-sensing or configurable) |
Battery
| Battery Type |
Lithium-Ion (hot-swappable, user-replaceable) |
| Battery Life Expectancy |
Up to 3 times longer than VRLA batteries |
| Recharge Time |
Faster than traditional VRLA batteries |
| Runtime at Full Load |
Up to 14 minutes |
| External Battery Capability |
Yes (supports external battery cabinets) |
Management & Connectivity
| Display |
Colour LCD with gravity sensing |
| Communication Ports |
USB, Serial (RS-232) |
| Network Management |
Optional IntelliSlot network card (SNMP/Web) |
| Software Included |
Power Assist (USB), Power Insight (network, free download) |
| Remote Shutdown |
Yes (emergency power-off capability) |
| Protocols Supported |
SNMP, Modbus, BACnet (with optional card) |
Protection
| Surge Protection |
Network-grade, ANSI C62.41 Category B |
| Circuit Breaker |
Resettable input and output breakers |
| Overload Protection |
Electronic current-limiting with visual and audible alarms |
Physical & Environmental
| Form Factor |
2U Rack/Tower Convertible |
| Dimensions (Rack) |
Approximately 429mm W × 399mm D × 86mm H (2U) |
| Weight |
Approximately 16.8 kg (37 lbs) |
| Energy Certification |
Energy Star 2.0 Certified |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Warranty & Compliance
| Warranty |
5 years (electronics and batteries included) |
| Compliance |
REACH, RoHS, RoHS 2, WEEE |
| Country of Origin |
China |
Specifications are sourced from the manufacturer product page and may be updated. Please consult Vertiv or your authorised reseller for the most current technical information.
