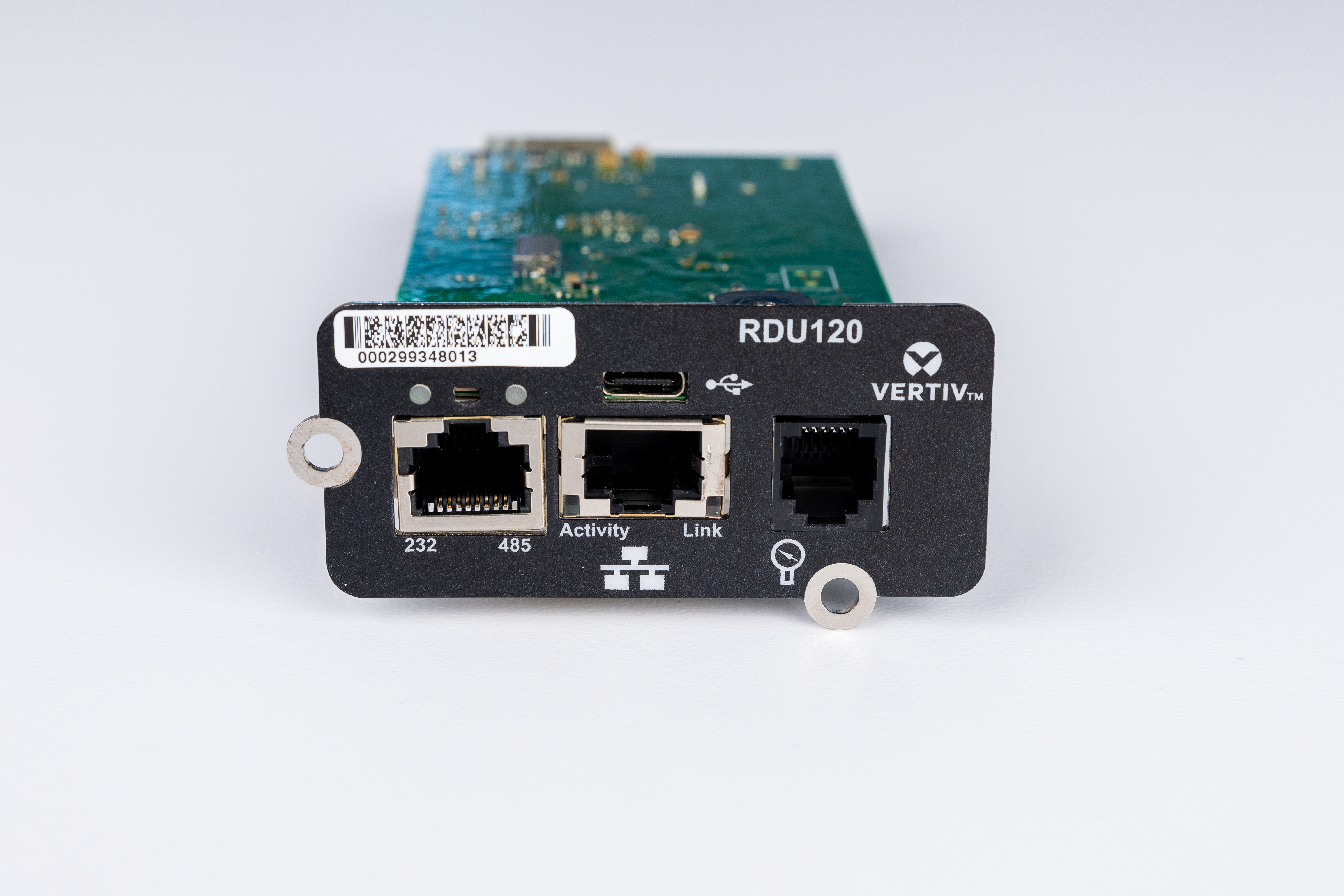

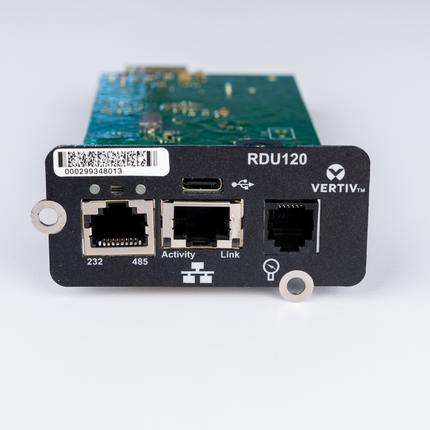

Vertiv Liebert IntelliSlot RDU120 Network Management Card
The Vertiv Liebert IntelliSlot RDU120 is a professional-grade network management card designed to provide real-time remote monitoring and control for Vertiv power and cooling infrastructure. It enables communication among Vertiv products and provides web access, data via SNMP, Modbus and BACNet for Vertiv equipment. The RDU120 is UL2900-1 and IEC 62443-4-2 cybersecurity certified, making it ideal for data centers, communication networks, and critical facility management applications.
Key Features
-
Real-Time Monitoring: Real-time view of parametric data and system statuses for connected Vertiv equipment
-
Multi-Protocol Support: Web access, SNMP v3, Modbus TCP, and BACNet connectivity for seamless integration with building management systems
-
Environmental Monitoring: Supports environmental monitoring via Geist Sensors for temperature, humidity, leak detection, door closures and contact closures
-
Cybersecurity Certified: UL2900-1 and IEC 62443-4-2 cybersecurity certified with secure boot and remote authentication protocols
-
Web Browser Access: Provides web access to the installed devices via popular web browsers-Microsoft Internet Explorer, Mozilla Firefox, Google Chrome and Safari
-
Alarm Notifications: Provides alarm notifications via email and text messaging
Professional Remote Management
The RDU120 network card delivers centralized remote monitoring and control for critical infrastructure. It integrates seamlessly with Vertiv Environet Alert, Power Insight, Power Assist, and LIFE Services, enabling comprehensive visibility across your facility. The card supports SNMP v3 for secure data transmission and provides RESTful API support for custom integration with third-party management tools.
Advanced Security Features
Secure SNMP is supported via SNMP v3. The secure boot implementation prevents unauthorized tampering of the installed software. Centralized access and authorization management provides an additional layer of security via remote authentication protocols – RADIUS, TACACS+ and LDAP/AD. Port-based network access control (PNAC) is supported via 802.1x, ensuring only authorized devices can access your critical systems.
Connectivity & Compatibility
-
Ethernet Port: RJ-45 10/100/1000 Mb/s Gigabit Ethernet for high-speed network connectivity
-
Sensor Port: RJ-12 one-wire connector for Geist environmental sensors (up to 65.6 ft / 20 m cable length)
-
Additional Ports: RS-485/RS-232 and USB-C for direct device communication
-
Protocol Support: SNMP v3, Modbus TCP, BACNet, HTTPS, RESTful API
What's in the Box
- Vertiv Liebert IntelliSlot RDU120 Network Management Card
- Installation hardware
- Quick start guide
Full Specifications
Physical
| Dimensions (W × D × H) |
2.97 × 5.2 × 1.45 in. (75.5 × 132 × 37 mm) |
| Weight |
0.2 kg (7 oz) |
| Shipping Weight |
0.6 kg (1.3 lb) |
Power
| Input Voltage |
7 to 12 VDC |
| Power Consumption |
3.6 W maximum |
Environmental
| Operating Temperature |
32 to 104°F (0 to 40°C) |
| Operating Humidity |
10% to 90% RH (non-condensing) |
| Storage Temperature |
-4 to 140°F (-20 to 60°C) |
Communication
| Ethernet Port |
RJ-45, 10/100/1000 Mb/s, Category 5e cable, up to 328 ft (100 m) |
| Sensor Port |
RJ-12 one-wire connector, Geist sensor cable, up to 65.6 ft (20 m) |
| Protocols |
SNMP v3, Modbus TCP, BACNet, HTTPS, RESTful API |
| Additional Ports |
RS-485/RS-232, USB-C |
Security & Certifications
| Cybersecurity Certifications |
UL2900-1, IEC 62443-4-2 |
| Authentication |
RADIUS, TACACS+, LDAP/AD |
| Network Access Control |
802.1x (PNAC) |
| Encryption |
HTTPS, SNMP v3 |
Specifications are sourced from the manufacturer product page and may be updated.
