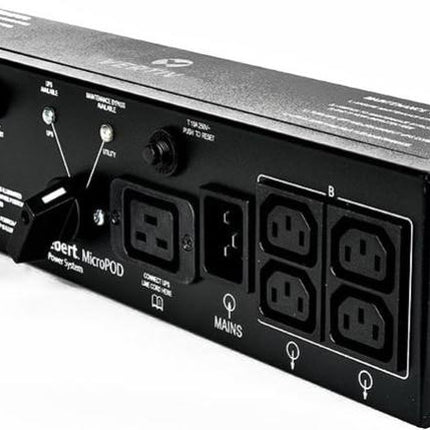

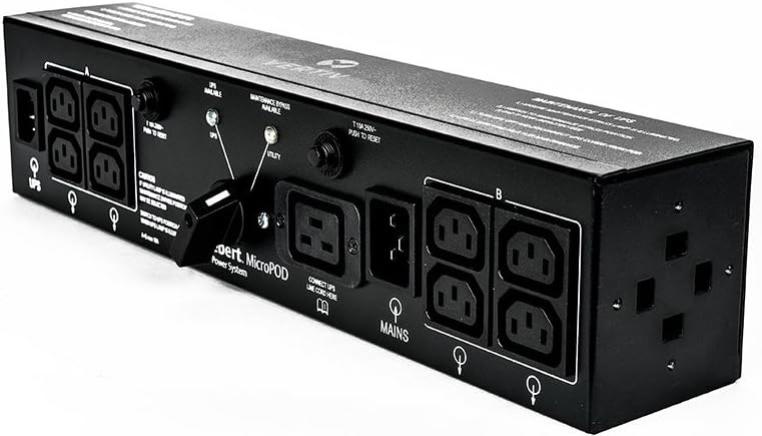

Vertiv Liebert MicroPod 2200-3000VA External Maintenance Bypass Switch

    Description

    Vertiv Liebert MicroPod 2200-3000VA External Maintenance Bypass Switch

    The Vertiv Liebert MicroPod MP2-220L is a 2U rackmount maintenance bypass and power output distribution switch designed for uninterruptible power supply (UPS) systems up to 3kVA. When your critical computer systems can't afford downtime - even during scheduled UPS maintenance or replacement - the MicroPod ensures continuous uptime by allowing manual switchover from UPS power to utility power without interruption. Perfect for data centres, IT equipment rooms, and mission-critical server installations where every second of availability counts.

    Key Features

    • Maintenance Bypass Capability: Manually transfer connected equipment to utility power without powering down, enabling UPS maintenance or replacement with zero downtime
    • Universal Compatibility: Works with any brand of single-phase UPS rated 3kVA or smaller, including Liebert GXT, PSI, Edge, and GXT5 series
    • Dual Operating Modes: Switch between UPS mode (UPS available) and utility mode (maintenance bypass) with a simple rotary switch
    • Compact 2U Design: Space-efficient rackmount form factor fits standard 19-inch racks or can be wall-mounted using included brackets
    • Plug-and-Play Installation: Easy setup with supplied utility input cord and UPS connection cords - no complex wiring required
    • Fast Transfer Time: Less than 6 milliseconds switchover ensures uninterrupted power to connected equipment

    How It Works

    The Liebert MicroPod plugs into both your utility power source and your UPS system. All protected devices connect to the MicroPod's output receptacles. In UPS mode, power flows from the UPS through the MicroPod to your equipment, providing battery backup and conditioned power. When you need to service or replace the UPS, simply rotate the bypass switch to utility mode - your equipment continues running on utility power while the UPS can be safely removed. Transferring back to UPS protection is just as simple.

    Flexible Mounting Options

    The MP2-220L includes mounting brackets for installation in any direction within a standard 19-inch rack enclosure. The bracket holes are notched for easy installation and secure attachment. The unit can also be installed on the floor or wall-mounted for tower UPS configurations, offering maximum flexibility for your server room or data centre layout.

    Power Distribution

    • Input Connection: EN60320 C20 inlet for utility power and EN60320 C19 inlet for UPS output connection
    • Output Receptacles: Four (4) EN60320 C13 outlets with 10A circuit breaker protection, plus two (2) EN60320 C13 outlets with 10A circuit breaker protection, plus one (1) EN60320 C19 outlet with 16A circuit breaker protection
    • Load Capacity: Supports up to 3kVA depending on connected UPS rating
    • Frequency: 50/60 Hz operation

    What's in the Box

    • MicroPod MP2-220L unit
    • 10ft utility input cord
    • 6ft UPS connection cord
    • Wall/rack mounting kit with brackets and hardware
    • User manual

    Full Specifications

    Model Number MP2-220L
    Form Factor 2U rackmount/tower
    UPS Compatibility Any brand, single-phase, up to 3kVA
    Voltage Rating 208/230 VAC
    Frequency 50/60 Hz
    Transfer Time < 6 milliseconds
    Input Connection (Utility) EN60320 C20
    Input Connection (UPS) EN60320 C19
    Output Connection (UPS) EN60320 C20
    Output Receptacles (4) EN60320 C13 with 10A breaker, (2) EN60320 C13 with 10A breaker, (1) EN60320 C19 with 16A breaker
    Dimensions (W × D × H) 394 × 77 × 88 mm
    Weight 2.0 kg
    Operating Temperature 0°C to 40°C
    Storage Temperature -20°C to +60°C
    Humidity 0% to 95%, non-condensing
    Mounting 19-inch rack, wall, or floor (brackets included)

    Specifications are sourced from the manufacturer product page and may be updated.
