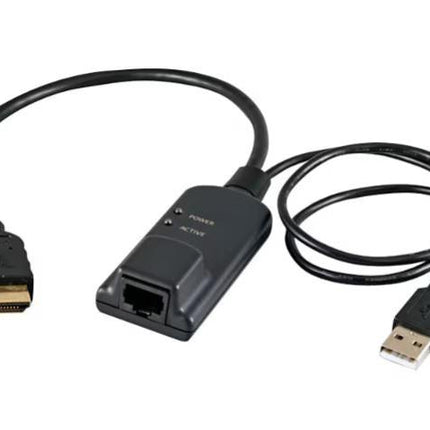

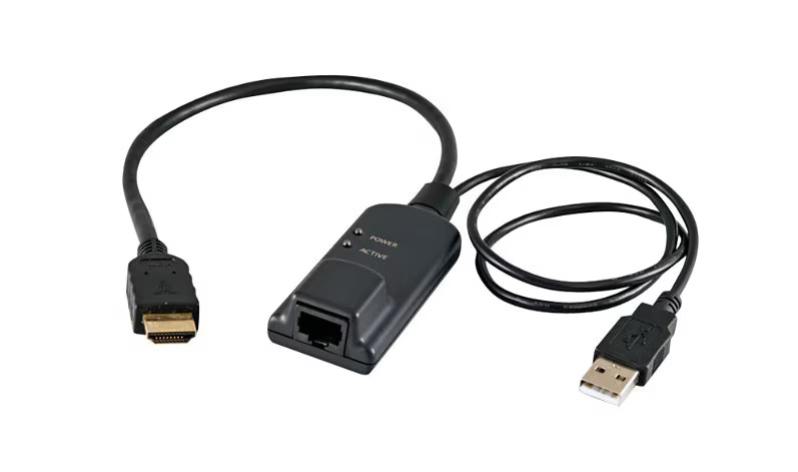

Vertiv MPUIQ-VMCHD HDMI KVM Server Interface Module with Virtual Media
The Vertiv Avocent MPUIQ-VMCHD Server Interface Module is a professional-grade KVM dongle designed to streamline server management by connecting your servers to Vertiv Avocent MergePoint Unity and AV 3000 series KVM switches. This compact module supports HDMI video, USB keyboard and mouse, virtual media, CAC (Common Access Card) authentication, and USB 2.0, making it ideal for data centers, server rooms, and enterprise IT environments where efficient remote server access is critical.
Key Features
-
HDMI video support: Delivers high-quality digital video output via 19-pin HDMI Type A connector for crisp server display
-
Virtual media and CAC support: Enables remote ISO loads, troubleshooting, and smartcard/CAC authentication for secure access
-
Single CAT5/CATx cable connection: Drastically reduces cable bulk by transmitting video, keyboard, mouse, and USB signals over one standard network cable (up to 150 feet/45 meters)
-
Keep Alive functionality: Ensures your server continues operating properly even without connectivity to the KVM switch
-
USB 2.0 connectivity: Supports USB keyboard, mouse, and peripheral devices with full USB 2.0 speeds
-
Plug-and-play design: Quick installation with no external power required - draws power directly from the server
Professional Server Management Solution
The MPUIQ-VMCHD module is engineered for IT administrators who need reliable, remote KVM over IP access to multiple servers. By converting video, keyboard, mouse, and USB signals into a single CATx cable connection, this interface module eliminates the cable clutter typical of traditional KVM setups. The virtual media capability allows you to remotely mount ISO files, perform BIOS updates, and troubleshoot servers without physical access to the hardware.
Enhanced Security with CAC Support
With built-in Common Access Card (CAC) authentication support, the MPUIQ-VMCHD meets stringent security requirements for government, military, and enterprise applications. The TAA-compliant version (MPUIQ-VMCHD-G01) is available for organizations requiring Trade Agreements Act compliance.
Universal Compatibility
Designed for seamless integration with:
- Vertiv Avocent MergePoint Unity KVM switches
- Vertiv Avocent AV 3000 series KVM switches
- Servers and workstations with HDMI video output and USB connectivity
- Standard CAT5, CAT5e, or CAT6 cabling infrastructure
Connectivity and Ports
-
Video output: 19-pin HDMI Type A male connector (digital audio/video)
-
USB connection: Male USB Type A for keyboard, mouse, and USB 2.0 peripherals
-
Network connection: RJ-45 female port for connection to KVM switch via CAT5/CATx cable
-
Cable length: 0.36 meters (14 inches) from module to server connections
-
Maximum distance to KVM: Up to 150 feet (45 meters) using standard CATx cable
What's in the Box
- 1 × Vertiv MPUIQ-VMCHD Server Interface Module
- Quick Installation Guide
Full Specifications
| Product Type |
KVM Server Interface Module (Dongle) |
| Model Number |
MPUIQ-VMCHD |
| Video Interface |
HDMI (19-pin Type A male) |
| USB Interface |
USB 2.0 Type A male |
| Network Interface |
RJ-45 female |
| Cable Length |
0.36 m (14 inches) |
| Maximum CATx Distance |
45 m (150 feet) |
| Virtual Media Support |
Yes |
| CAC Authentication |
Yes (Common Access Card) |
| Keep Alive Function |
Yes |
| Power Source |
Bus-powered from server (no external power required) |
| Connectivity Technology |
Wired |
| Form Factor |
External module |
| Weight |
0.091 kg (91 g) |
| Compatible Systems |
Vertiv Avocent MergePoint Unity KVM switches, Vertiv Avocent AV 3000 series KVM switches |
| Colour |
Black |
Specifications are sourced from the manufacturer product page and may be updated.
