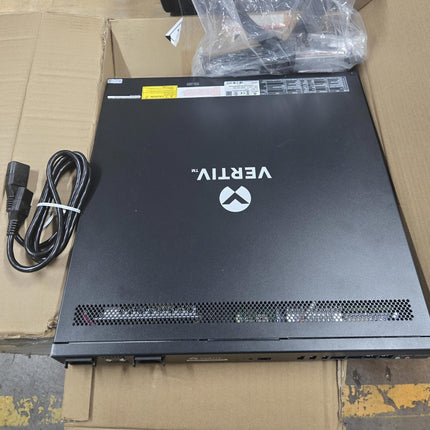

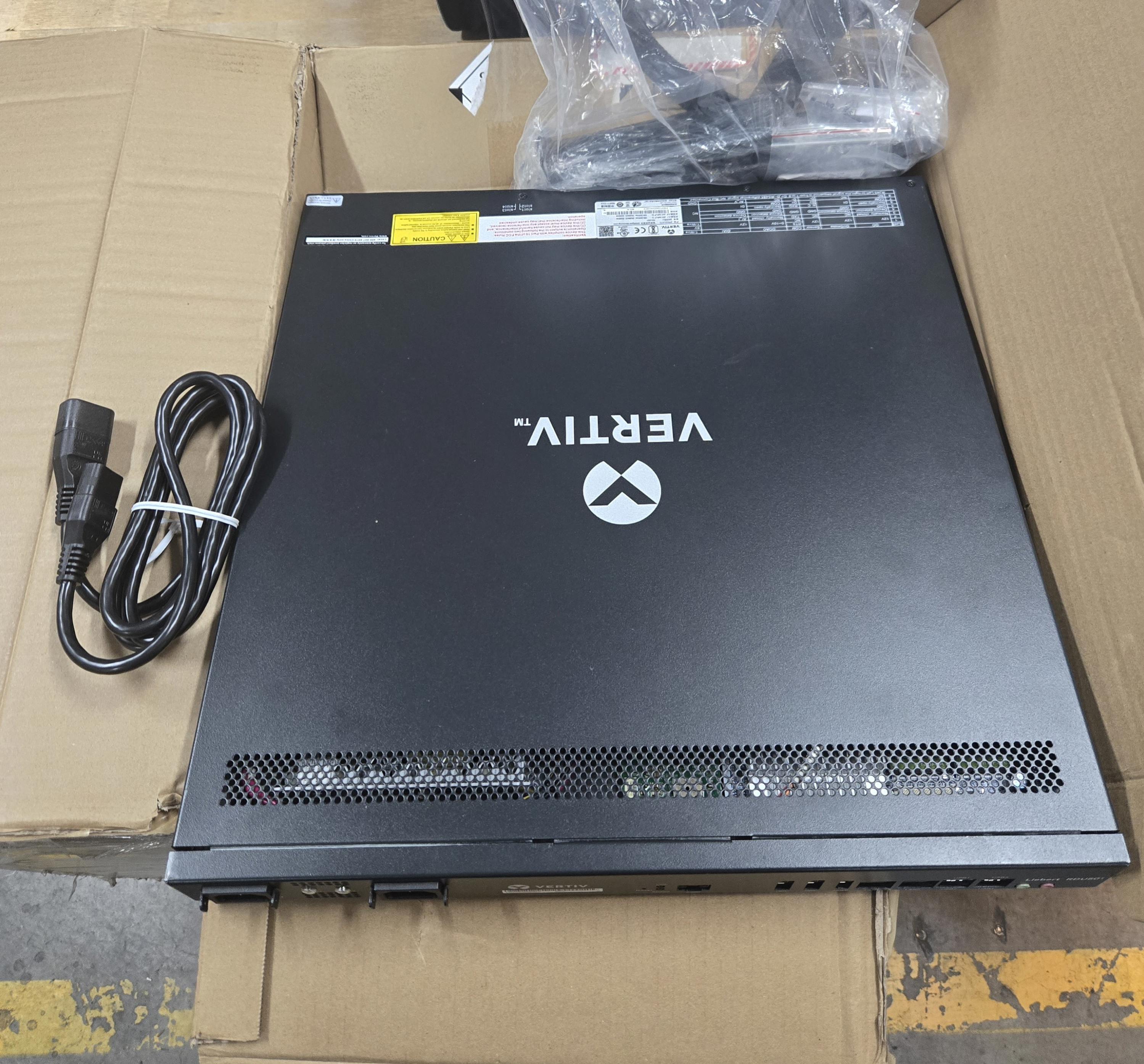

Vertiv Liebert RDU501 Intelligent Infrastructure Gateway
The Vertiv Liebert RDU501 is an intelligent infrastructure management solution designed for computer rooms and small to mid-size data centers. This premium gateway appliance allows data center administrators to monitor environmental conditions and critical infrastructure including UPS systems, precision cooling units, generator sets, and other mission-critical equipment. With its built-in web server, automated IT server shutdown, and out-of-band management capabilities, the RDU501 delivers complete control over your data center infrastructure.
Key Features
-
Comprehensive Infrastructure Monitoring: Collects data from environmental sensors via Modbus 485, SNMP, dry contacts, and analog signals for real-time visibility
-
IT Server Management: Connect up to 40 IT servers via IPMI v2.0 for remote monitoring, startup, shutdown, and out-of-band serial console access
-
Built-in Web Server: Intuitive web-based interface for configuration, monitoring, and control accessible from anywhere
-
Automated Server Shutdown: Intelligent automated IT server shutdown functionality protects critical equipment during power events
-
Flexible Connectivity: Four Gigabit Ethernet ports, one fiber port, four RS-232/485 serial ports, USB ports, and HDMI outputs
-
Expandable Design: Four hot-swappable expansion slots support optional cards for additional I/O and communication interfaces
Intelligent Environmental Monitoring
The RDU501 provides comprehensive environmental monitoring capabilities essential for maintaining optimal data center conditions. Monitor temperature, humidity, water leaks, smoke, door contacts, and other environmental parameters in real time. The system supports multiple temperature and humidity sensors, digital input sensors including door sensors, water leak detection, smoke sensors, motion sensors, and vibration sensors. With its robust sensor integration, the RDU501 helps identify potential issues early, enabling proactive maintenance and significantly reducing the risk of downtime.
Complete Infrastructure Management
Designed as an upgrade to the Liebert RDU-A G2, the RDU501 integrates easily within a 19-inch standard rack with its compact 43.5mm height. The appliance enables users to monitor the performance of all IT assets including thermal management units, UPS systems, and generator sets. Advanced features include video surveillance integration, access control management, remote door opening, power management with energy consumption tracking, and historical data logging with graphical alarm reports.
Advanced IT Management Functions
Beyond environmental monitoring, the RDU501 delivers powerful IT management capabilities. Connect and manage up to 40 servers through IPMI v2.0 interfaces, providing full visibility and control. The out-of-band management features ensure you maintain access even during network outages. Serial console access enables direct server management, while the automated shutdown functionality protects servers during extended power events. Integration with Vertiv's Trellis Smart InfraSight platform provides consolidated monitoring across multiple RDU501 units for enterprise-wide visibility.
Reliable Fanless Design
The RDU501 utilizes natural cooling without fans, dramatically improving device reliability, reducing maintenance requirements, and enabling operation in dusty environments across a wide temperature range. This fanless design makes the unit ideal for edge deployments in remote locations such as BTS sites, network closets, and small server rooms where maintenance access may be limited.
Universal Connectivity
- Four 10/100/1000M Gigabit Ethernet ports with one 1000M fiber port
- Four independent RS-232/485 serial ports (self-adaptive)
- Four USB-A ports for keyboard, mouse, or USB modem connectivity
- Two HDMI ports for local display
- Four digital input ports for dry contact sensors
- Two relay output ports for alarm or control functions
- Four hot-swappable expansion slots for EXP8COM, EXP8DIAI, EXP8DOAO, and EXP2DI6DO cards
- Dual isolated power inputs for redundancy
Applications
The Vertiv RDU501 is ideal for:
- Small to mid-size data centers requiring comprehensive monitoring
- Computer rooms and server closets
- Remote infrastructure sites (BTS, network edge locations)
- Industrial control environments requiring environmental monitoring
- Medical facilities with temperature-sensitive equipment or pharmaceutical storage
- Integration with Building Management Systems (BMS) and DCIM platforms
Certifications and Compliance
The RDU501 satisfies CE, UL, FCC, and RoHS R10 standards. Dust compliance meets indoor requirements of GR-63 for telecommunications environments.
What's in the Box
- RDU501 intelligent monitoring unit
- Installation and commissioning manual
- 19-inch rack mounting ears
- RDU line card
- Power cable (IEC60320 C13 to C14, 2000mm, EU standard)
- Mounting hardware
Full Specifications
Physical Specifications
| Rack Mounting |
19-inch standard rack, 1U height |
| Height |
43.5mm |
| Cooling Method |
Fanless (natural cooling) |
Environmental Specifications
| Operating Temperature |
Wide temperature range supported |
| Environmental Protection |
Dust compliant with GR-63 indoor requirements |
| Installation |
Indoor use only |
Network and Communication
| Ethernet Ports |
4 × 10/100/1000M Gigabit Ethernet |
| Fiber Port |
1 × 1000M fiber optic |
| Serial Ports |
4 × RS-232/485 (self-adaptive) |
| USB Ports |
4 × USB-A type |
| Video Output |
2 × HDMI ports |
| Protocols |
TCP/IP, Modbus 485, SNMP, IPMI v2.0 |
I/O and Expansion
| Digital Inputs |
4 ports (12 sensors supported by default) |
| Relay Outputs |
2 ports (DO1, DO2) |
| Expansion Slots |
4 hot-swappable slots for optional cards |
| Optional Cards |
EXP8COM, EXP8DIAI, EXP8DOAO, EXP2DI6DO |
IT Management
| Server Connections |
Up to 40 IT servers via IPMI v2.0 |
| Console Devices |
Up to 32 console devices supported |
| Management Features |
Out-of-band management, serial console access, automated server shutdown |
Power
| Power Inputs |
Dual isolated power inputs for redundancy |
| Power Connector |
IEC60320 C14 inlet |
Software and Integration
| Interface |
Built-in web server with secure HTTPS access |
| Access Protocols |
HTTP, HTTPS |
| Integration |
Compatible with Trellis Smart InfraSight, BMS, and DCIM systems |
| Mobile App Support |
Yes (HTTPS connection required) |
Monitoring Capabilities
| Environmental Sensors |
Temperature, humidity, water leak, smoke, motion, vibration, door contacts |
| Infrastructure Monitoring |
UPS, precision cooling, generators, PDUs, thermal management units |
| Data Collection |
Modbus 485, SNMP, dry contacts, analog signals |
| Historical Records |
Up to 1000 energy consumption history records |
Certifications
| Compliance |
CE, UL, FCC, RoHS R10, GR-63 (dust) |
Specifications are sourced from the manufacturer product page and may be updated.
