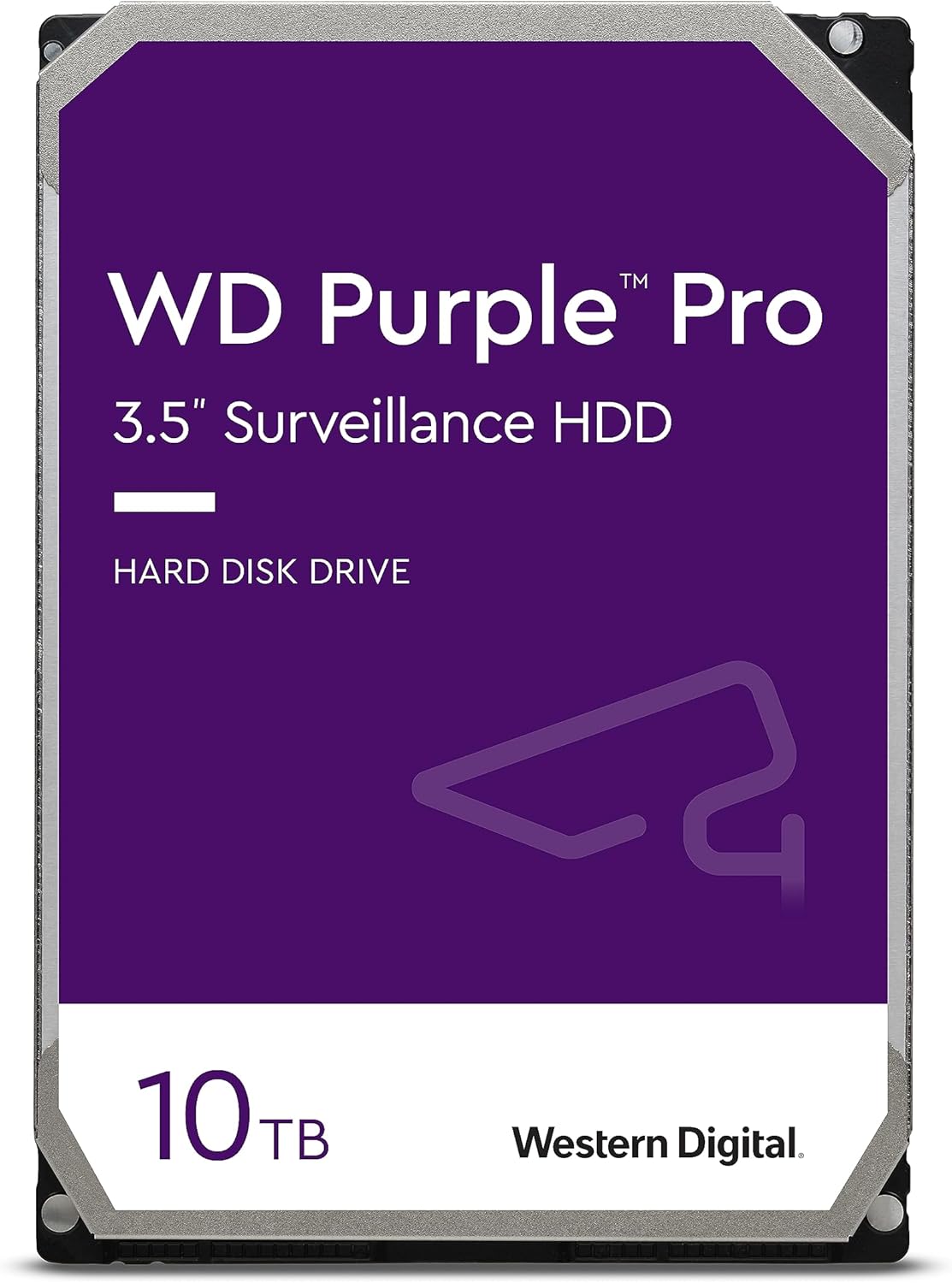

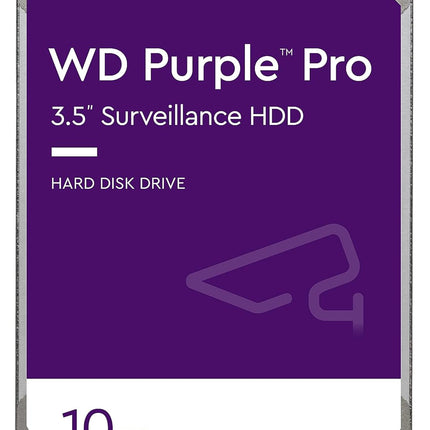

WD Purple Pro WD102PURP 10TB Surveillance Hard Drive 7200 RPM 512MB Cache
The Western Digital WD Purple Pro WD102PURP is an enterprise-class surveillance hard drive engineered for advanced AI-enabled recorders, video analytics servers, and deep learning solutions. With 10TB capacity, 7200 RPM performance, and 512MB cache, this drive delivers reliable, high-performance storage for always-on surveillance environments operating 24/7.
Built for AI-Enabled Surveillance Systems
WD Purple Pro drives are designed for new generations of high-end AI-enabled recorders, video analytics appliances, deep-learning servers, and cloud solutions that can benefit from high-capacity storage with high performance and additional workload capability. This drive supports up to 64 HD camera streams and is optimized for demanding surveillance workloads with a 550TB per year workload rating.
AllFrame AI Technology
The WD102PURP features Western Digital's exclusive AllFrame AI technology, which helps reduce frame loss and improve overall video playback. This advanced firmware not only enables recording of multiple streams per camera but also supports up to 32 AI streams per drive for deep learning analytics within the system, ensuring smooth operation even with metadata-intensive AI processing.
Key Features
-
Capacity: 10TB for extended video retention
-
Performance: 7200 RPM spindle speed with 512MB cache
-
Interface: SATA 6 Gb/s (SATA III)
-
Form Factor: 3.5-inch internal drive
-
Recording Technology: CMR (Conventional Magnetic Recording)
-
Camera Support: Up to 64 HD single-stream cameras
-
AI Streams: Supports up to 32 AI streams per drive
-
Workload Rate: Up to 550TB per year
-
Transfer Rate: Up to 272 MB/s
-
MTBF: 2.5 million hours
-
Load/Unload Cycles: 600,000 cycles
-
Power Consumption: 8.6W during active operation
Enterprise-Class Reliability

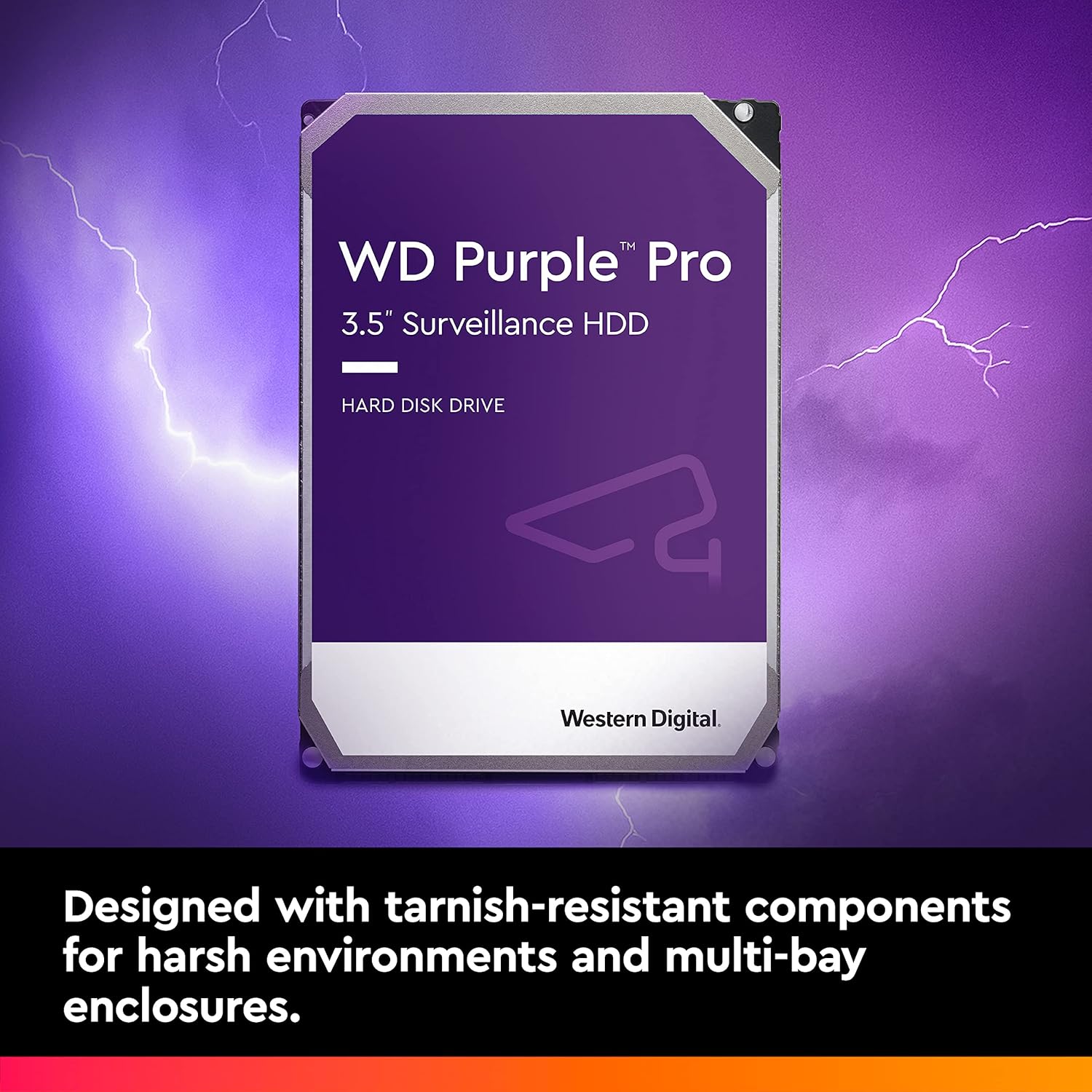

With an MTBF of 2.5 million hours and tarnish-resistant components, WD Purple Pro drives are engineered for advanced smart video solutions that operate 24/7. With full multi-bay support and RV sensors, these drives deliver reliable operation in large-scale surveillance systems even in harsh environments with operational vibration.
Western Digital Device Analytics (WDDA)
The drive includes WDDA proactive health management, which provides operational and diagnostic parametric data for compatible systems. Algorithms interpret the data and direct the system to alert administrators of specific recommended actions to address potential issues, empowering better monitoring and proactive management of storage devices.
What's in the Box
- WD Purple Pro 10TB Internal Hard Drive (WD102PURP)
- Documentation
Full Specifications
| Model Number |
WD102PURP |
| Capacity |
10TB |
| Form Factor |
3.5-inch |
| Interface |
SATA 6 Gb/s (SATA III) |
| Recording Technology |
CMR (Conventional Magnetic Recording) |
| Cache |
512MB |
| Spindle Speed |
7200 RPM |
| Data Transfer Rate |
Up to 272 MB/s |
| Camera Support |
Up to 64 HD cameras |
| AI Streams Supported |
Up to 32 AI streams per drive |
| Workload Rate |
550TB per year |
| Load/Unload Cycles |
600,000 |
| MTBF |
2.5 million hours |
| Power Consumption (Active) |
8.6W |
| Weight |
715g |
| Advanced Format |
Yes |
| RV Sensors |
Yes |
| Warranty |
5-year limited warranty |
Specifications are sourced from the manufacturer product page and may be updated.
