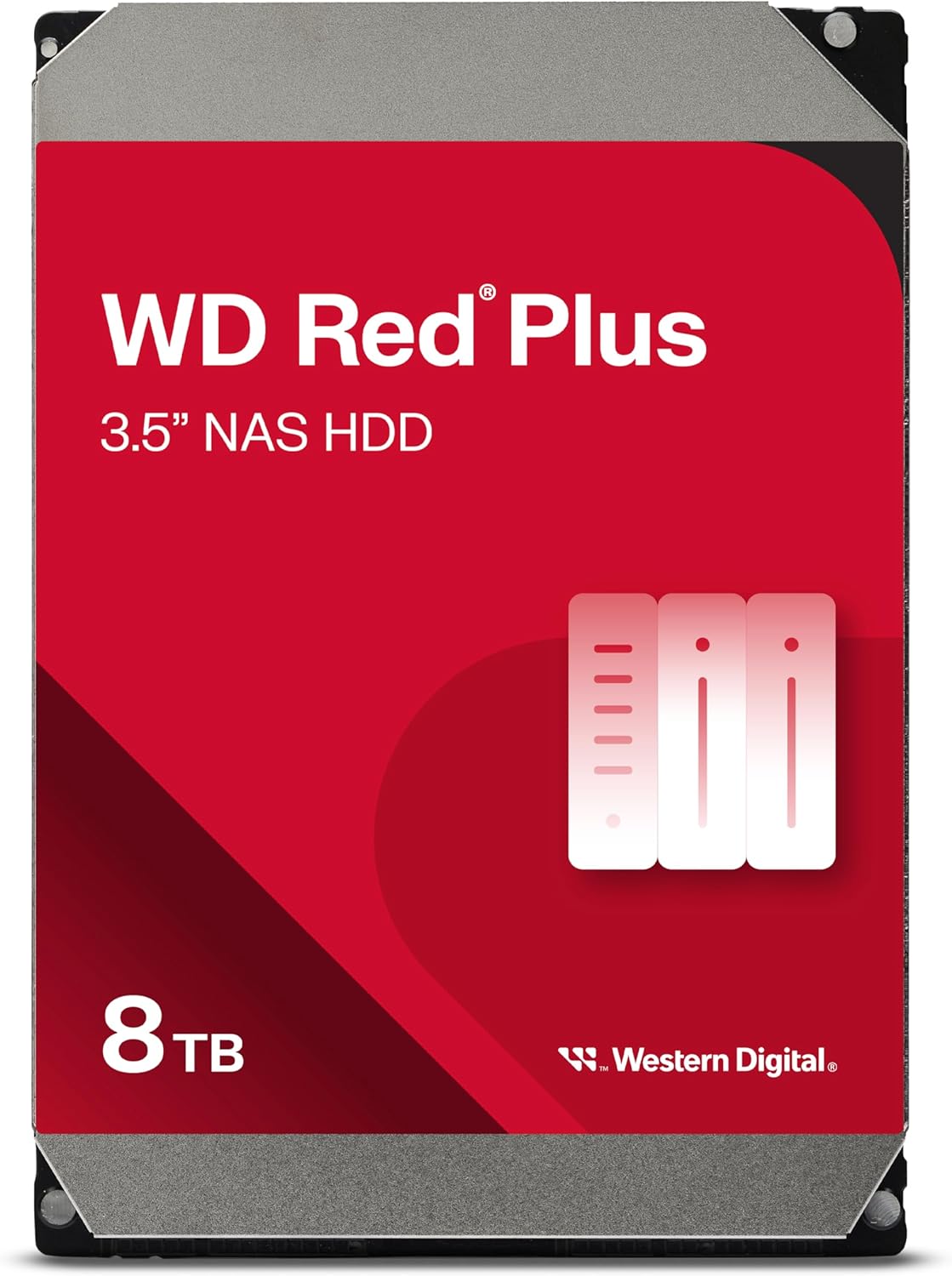

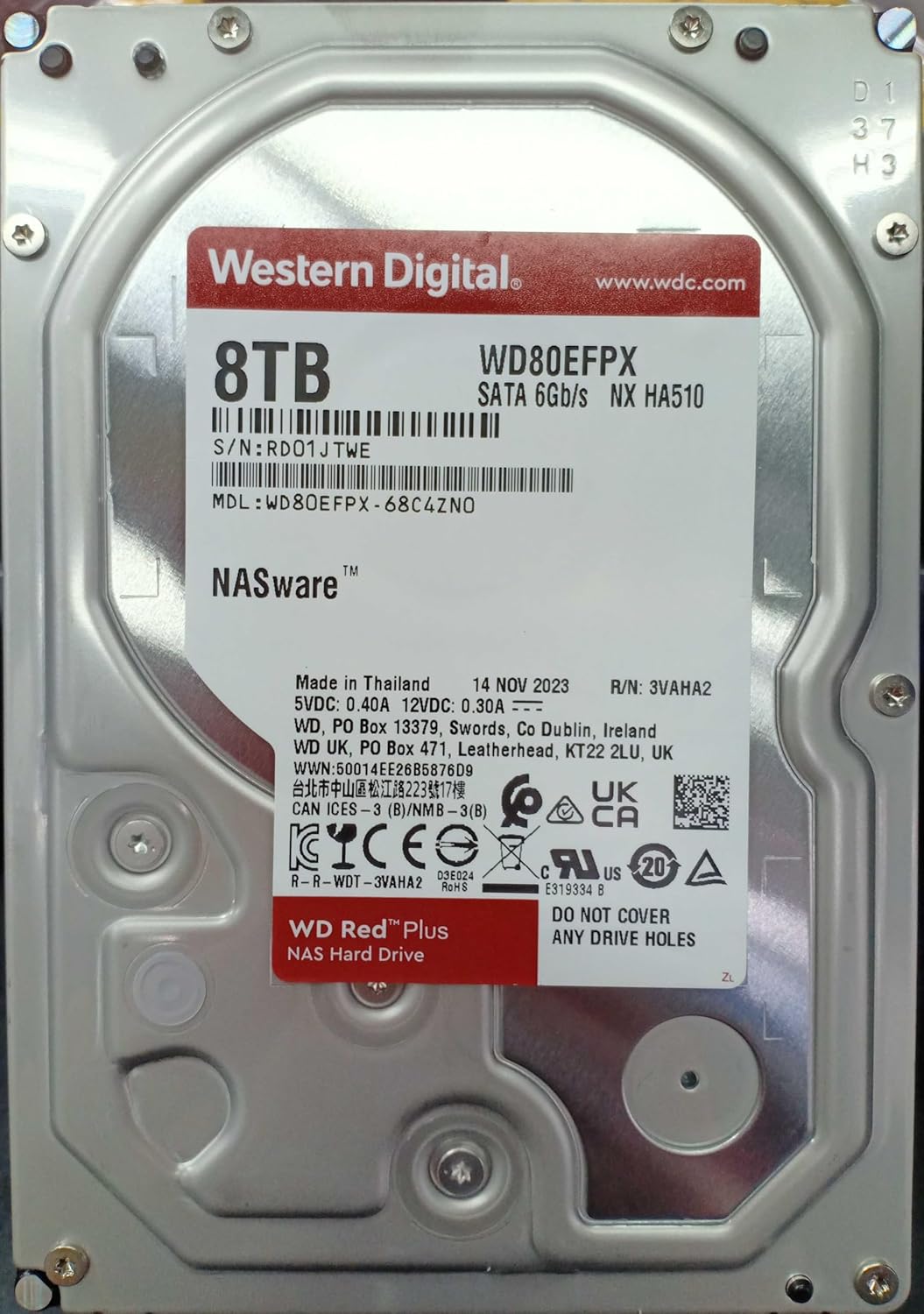

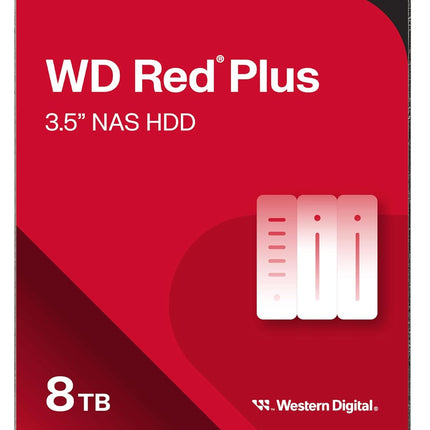

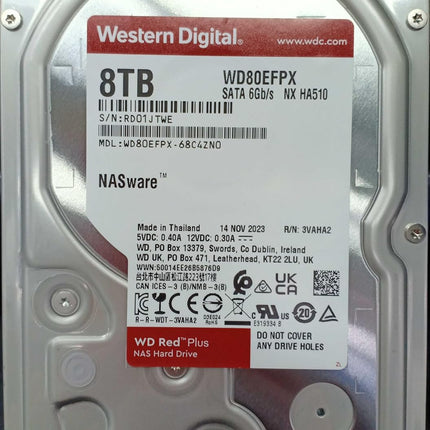

WD Red Plus 8TB NAS Internal Hard Drive 5640 RPM SATA 6Gb/s CMR

    Description

    WD Red Plus 8TB NAS Internal Hard Drive 5640 RPM SATA 6Gb/s CMR

    The WD Red Plus 8TB internal hard drive is designed specifically for NAS environments, delivering reliable performance for power users and small to medium business applications. With CMR (Conventional Magnetic Recording) technology, a 5640 RPM spindle speed, and a 256MB cache, this drive offers up to 215 MB/s transfer rates and supports NAS systems with up to 8 bays.

    Purpose-Built for NAS Systems

    Unlike standard desktop drives, the WD Red Plus features NASware technology, which fine-tunes drive parameters to match NAS system workloads for optimum performance and reliability. This drive is engineered for 24/7 operation, with an MTBF of 1 million hours, making it ideal for always-on network storage environments.

    • 180TB/year workload rate: Three times the rating of desktop drives
    • CMR recording technology: Ensures reliable data integrity and RAID compatibility
    • TLER (Time-Limited Error Recovery): Helps ensure uninterrupted operation in RAID arrays
    • 3D Active Balance Plus: Dual-plane balance control technology reduces vibration and noise in multi-drive systems

    Optimized for Reliability & Performance

    The WD Red Plus 8TB is optimized for lower total cost of ownership, using less power while delivering plenty of bandwidth for mixed performance demands. With 600,000 load/unload cycles and advanced error recovery controls, this drive is built to perform under the demanding conditions of high-intensity multi-user NAS environments.

    • Power efficiency: 5.2W read/write, 3.4W idle, 0.4W standby
    • Enhanced reliability: Less than 1 in 1014 non-recoverable read errors
    • Wide operating temperature: 0°C to 65°C
    • Low acoustics: 24 dBA idle, 28 dBA seek

    What's in the Box

    • WD Red Plus 8TB Internal Hard Drive (WD80EFPX)
    • Installation guide

    Full Specifications

    Storage

    Capacity 8TB
    Recording Technology CMR (Conventional Magnetic Recording)
    Interface SATA 6 Gb/s
    Form Factor 3.5-inch
    Advanced Format Yes

    Performance

    Rotational Speed 5640 RPM
    Cache 256 MB
    Internal Transfer Rate Up to 215 MB/s
    Native Command Queuing Yes

    Reliability

    MTBF 1,000,000 hours
    Load/Unload Cycles 600,000
    Non-Recoverable Read Errors <1 in 1014 bits read
    Workload Rate 180 TB/year
    Warranty 3-year limited warranty

    Power Management

    12VDC Peak Current 1.75 A
    Read/Write Power 5.2 W
    Idle Power 3.4 W
    Standby/Sleep Power 0.4 W

    Environmental

    Operating Temperature 0°C to 65°C
    Non-Operating Temperature -40°C to 70°C
    Operating Shock (2 ms) 70 Gs (read/write)
    Non-Operating Shock (2 ms) 250 Gs

    Acoustics

    Idle 24 dBA
    Seek (average) 28 dBA

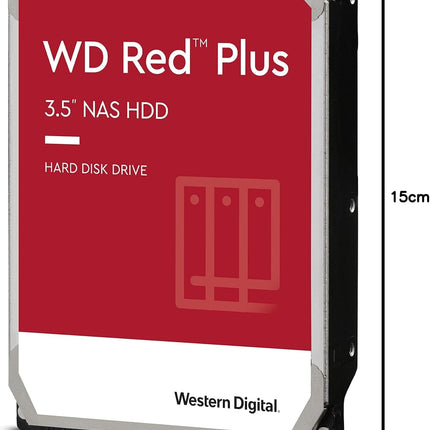

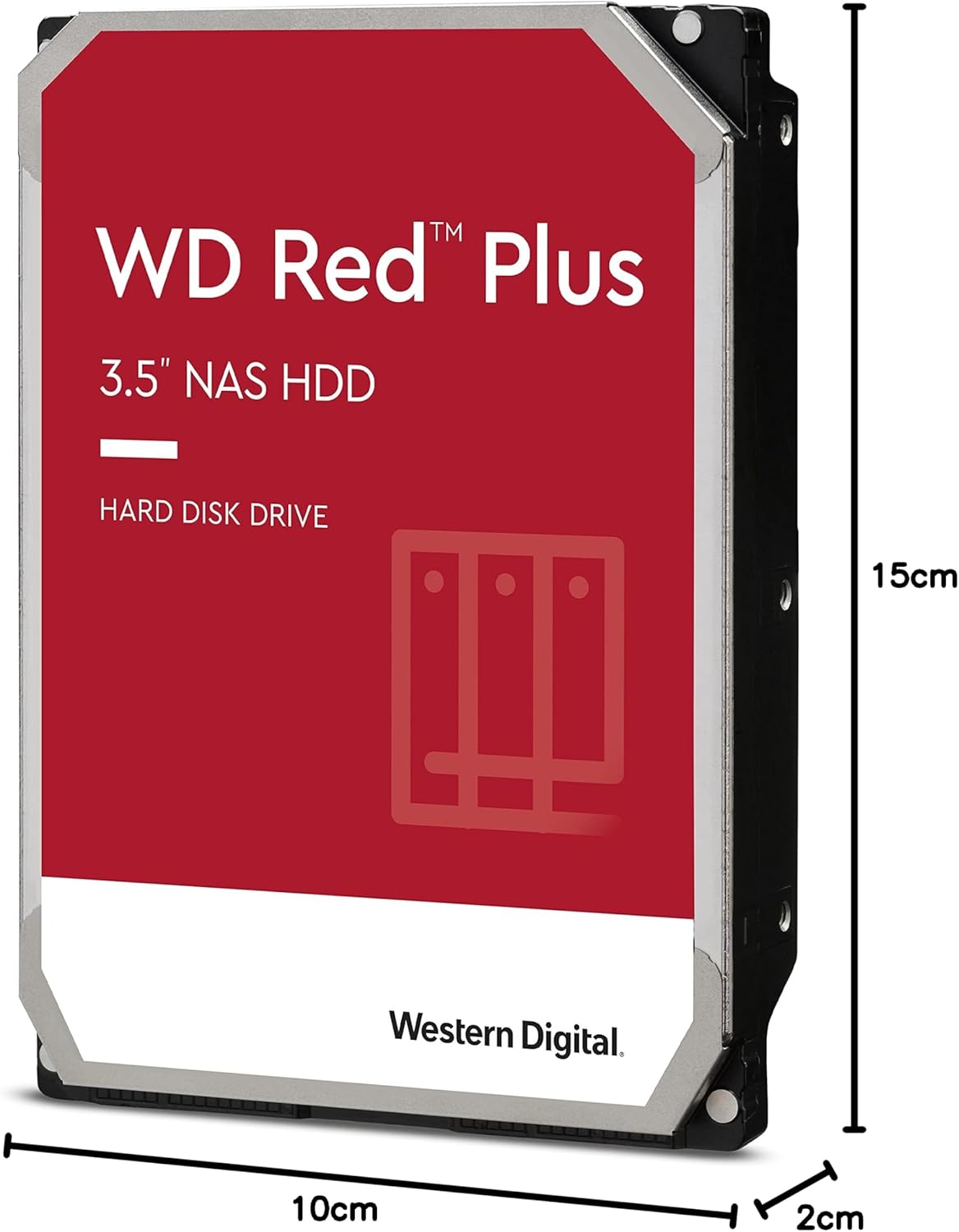

    Physical Dimensions

    Length 147 mm (5.787 in.)
    Width 101.6 mm (4 in.)
    Height 26.1 mm (1.028 in.)
    Weight 0.715 kg (1.58 lb.)

    What's in the Box

    Contents WD Red Plus 8TB Internal Hard Drive, Installation guide

    Specifications are sourced from the manufacturer product page and may be updated.

    Product form

    WD Red Plus 8TB NAS Internal Hard Drive 5640 RPM SATA 6Gb/s CMR

      $521.95

        • Guaranteed secure & safe checkout.

          paypal
        • Free shipping on all orders

        Description

        WD Red Plus 8TB NAS Internal Hard Drive 5640 RPM SATA 6Gb/s CMR

        The WD Red Plus 8TB internal hard drive is designed specifically for NAS environments, delivering reliable performance for power users and small to medium business applications. With CMR (Conventional Magnetic Recording) technology, a 5640 RPM spindle speed, and a 256MB cache, this drive offers up to 215 MB/s transfer rates and supports NAS systems with up to 8 bays.

        Purpose-Built for NAS Systems

        Unlike standard desktop drives, the WD Red Plus features NASware technology, which fine-tunes drive parameters to match NAS system workloads for optimum performance and reliability. This drive is engineered for 24/7 operation, with an MTBF of 1 million hours, making it ideal for always-on network storage environments.

        • 180TB/year workload rate: Three times the rating of desktop drives
        • CMR recording technology: Ensures reliable data integrity and RAID compatibility
        • TLER (Time-Limited Error Recovery): Helps ensure uninterrupted operation in RAID arrays
        • 3D Active Balance Plus: Dual-plane balance control technology reduces vibration and noise in multi-drive systems

        Optimized for Reliability & Performance

        The WD Red Plus 8TB is optimized for lower total cost of ownership, using less power while delivering plenty of bandwidth for mixed performance demands. With 600,000 load/unload cycles and advanced error recovery controls, this drive is built to perform under the demanding conditions of high-intensity multi-user NAS environments.

        • Power efficiency: 5.2W read/write, 3.4W idle, 0.4W standby
        • Enhanced reliability: Less than 1 in 1014 non-recoverable read errors
        • Wide operating temperature: 0°C to 65°C
        • Low acoustics: 24 dBA idle, 28 dBA seek

        What's in the Box

        • WD Red Plus 8TB Internal Hard Drive (WD80EFPX)
        • Installation guide

        Full Specifications

        Storage

        Capacity 8TB
        Recording Technology CMR (Conventional Magnetic Recording)
        Interface SATA 6 Gb/s
        Form Factor 3.5-inch
        Advanced Format Yes

        Performance

        Rotational Speed 5640 RPM
        Cache 256 MB
        Internal Transfer Rate Up to 215 MB/s
        Native Command Queuing Yes

        Reliability

        MTBF 1,000,000 hours
        Load/Unload Cycles 600,000
        Non-Recoverable Read Errors <1 in 1014 bits read
        Workload Rate 180 TB/year
        Warranty 3-year limited warranty

        Power Management

        12VDC Peak Current 1.75 A
        Read/Write Power 5.2 W
        Idle Power 3.4 W
        Standby/Sleep Power 0.4 W

        Environmental

        Operating Temperature 0°C to 65°C
        Non-Operating Temperature -40°C to 70°C
        Operating Shock (2 ms) 70 Gs (read/write)
        Non-Operating Shock (2 ms) 250 Gs

        Acoustics

        Idle 24 dBA
        Seek (average) 28 dBA

        Physical Dimensions

        Length 147 mm (5.787 in.)
        Width 101.6 mm (4 in.)
        Height 26.1 mm (1.028 in.)
        Weight 0.715 kg (1.58 lb.)

        What's in the Box

        Contents WD Red Plus 8TB Internal Hard Drive, Installation guide

        Specifications are sourced from the manufacturer product page and may be updated.
