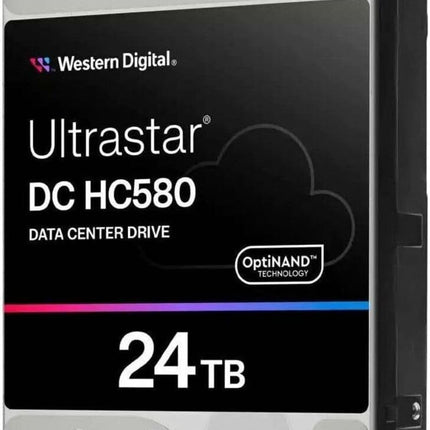

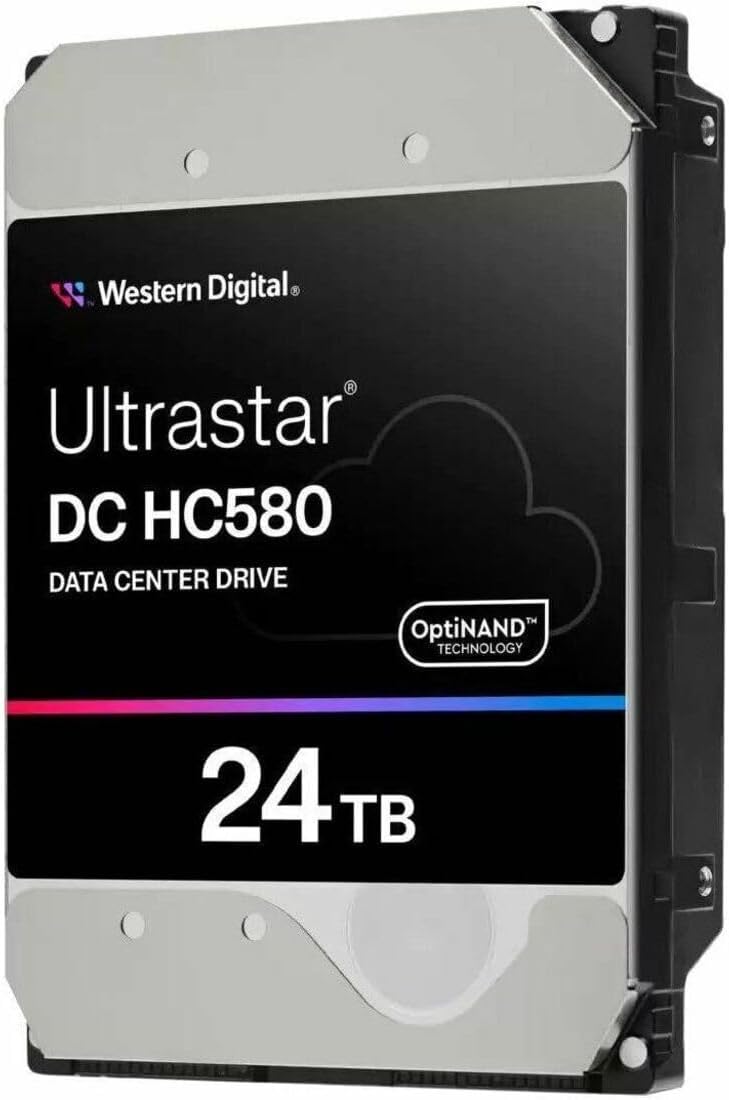

WD Ultrastar DC HC580 24TB 7200 RPM SATA 6Gb/s Data Center HDD

    Description

    WD Ultrastar DC HC580 24TB 7200 RPM SATA 6Gb/s Data Center Hard Drive

    The Western Digital Ultrastar DC HC580 is a high-capacity 24TB enterprise-grade internal hard drive engineered for data centers and cloud storage environments. Featuring improved OptiNAND technology, this 3.5-inch HDD maximizes storage density in footprint- and power-constrained environments, delivering exceptional reliability with up to 2.5 million hours MTBF and a robust 5-year limited warranty.

    High-Capacity Storage for Data Centers

    With a massive 24TB capacity, the Ultrastar DC HC580 leverages advanced technologies including energy-assisted magnetic recording (EAMR), triple-stage actuator (TSA), and HelioSeal helium-sealed design to enable efficient storage on a 10-disk CMR drive. This allows organizations to store more data in the same physical footprint while maintaining low power consumption.

    Performance Optimized for Heavy Workloads

    • Spindle Speed: 7200 RPM for fast data access
    • Cache Size: 512MB buffer for improved performance
    • Transfer Rate: Up to 298MB/s sustained data rate
    • Interface: SATA 6Gb/s (600 MB/s)
    • Workload Rating: Performance-optimized to handle heavy application workloads of up to 550TB per year
    • Recording Technology: Conventional Magnetic Recording (CMR)

    Enterprise Reliability and Data Protection

    Built with reliability in mind, the Ultrastar DC HC580 delivers dependability in intense data center environments. ArmorCache, a feature enabled by OptiNAND technology, offers higher performance in write cache disabled mode and provides enterprise power loss protection in write cache enabled mode, ensuring data integrity even during unexpected power events.

    • MTBF: Up to 2.5 million hours (projected)
    • Warranty: 5-year limited warranty
    • Operating Temperature: 5°C to 60°C
    • Non-Operating Temperature: -40°C to 70°C

    Ideal Applications

    • Cloud and hyperscale storage environments
    • Massive scale-out (MSO) high-density data centers
    • Distributed file systems
    • Primary and secondary storage for Apache Hadoop for Big Data analytics
    • Hybrid cloud environments
    • Hyperconverged infrastructure servers

    What's in the Box

    • Ultrastar DC HC580 Data Center HDD (24TB)

    Full Specifications

    Capacity 24TB
    Form Factor 3.5-inch
    Interface SATA 6Gb/s
    Spindle Speed 7200 RPM
    Cache Buffer 512MB
    Recording Technology CMR (Conventional Magnetic Recording)
    Transfer Rate Up to 298MB/s
    Workload Rate 550TB per year
    MTBF 2.5 million hours (projected)
    Warranty 5-year limited warranty
    Dimensions (L × W × H) 5.79" × 4" × 1.03"
    Weight 670g (0.67kg)
    Operating Temperature 5°C to 60°C
    Non-Operating Temperature -40°C to 70°C
    Security Base (SE)
    Compatibility Windows, Windows Server, Linux

    Specifications are sourced from the manufacturer product page and may be updated.
