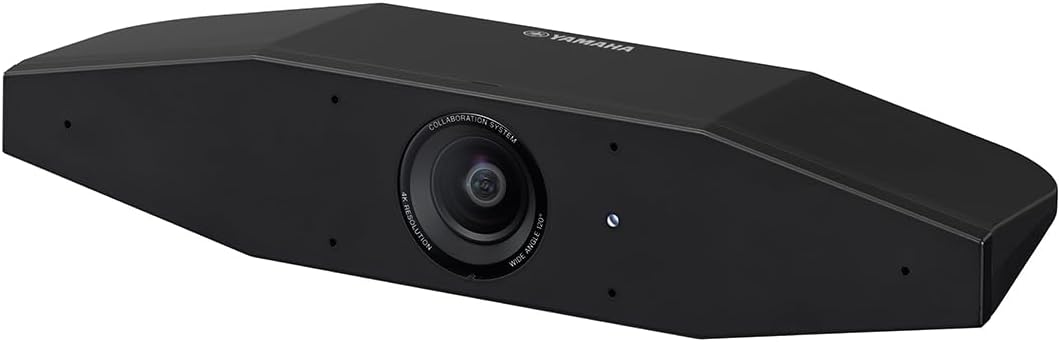

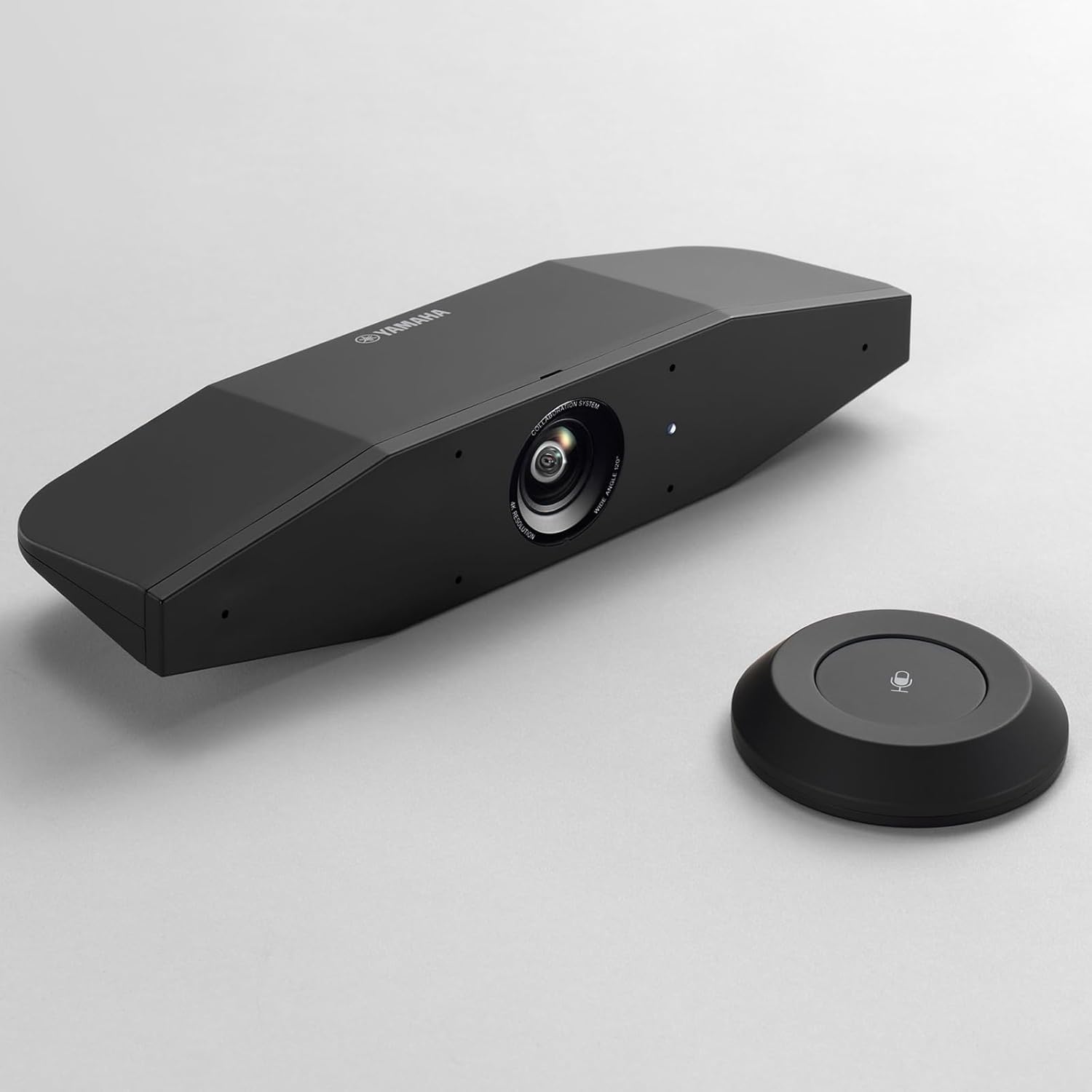

Yamaha CS-500 4K Video Bar with AI Tracking and Beamforming Microphone
Collaborate and connect easily without hassle with the Yamaha CS-500, a video collaboration system equipped with a 4K camera and Hexa beamforming microphone for comfortable and productive remote meetings in huddle rooms and offices. Featuring Yamaha's revolutionary SoundCap Eye technology, the CS-500 uses both voice and camera pickup to pinpoint participant locations, delivering a seamless and immersive tracking experience unlike any other.
SoundCap Eye Technology
The CS-500 unifies three of Yamaha's proprietary technologies to optimize video conferencing:
-
Face Focus Beamforming: The 4K camera tracks faces of participants using AI and limits audio beams to these locations, picking up conversations while reducing distracting noise around you
-
Self-Silence: Using Yamaha's Human Voice Activity Detection (HVAD) technology, the CS-500 automatically mutes the microphone when conference participants are not speaking, eliminating unnecessary background sound
-
Self-Volume Balancer: Automatically adjusts the speaker volume of the connected display according to ambient noise to keep an appropriate volume level at all times

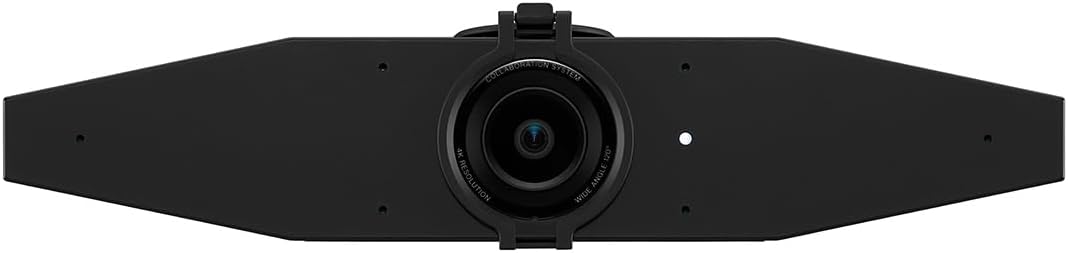

Advanced 4K Camera with Smart Framing
The built-in 8-megapixel 4K camera features a 120-degree field of view and focus range from 0.5 meters to infinity. The Smart Framing function recognizes people in the room who are speaking and automatically frames the video signal for remote participants with three modes: Group, Speaker, and Individual. Maximum zoom ratio is 5x, with framing controllable either automatically or via manual PTZ buttons on the remote control.
Hexa-Microphone Array
Six MEMS microphones are arranged in a hexagonal array that creates a 3-dimensional microphone beam, more accurately capturing words spoken during conversations compared to normal video sound bars. Microphone pickup covers an angle of 120 degrees up to a maximum distance of 6 meters (19.6 feet) when face focus beamforming is OFF, or 3 meters (9.8 feet) when ON. Frequency response: 100 Hz to 16 kHz.
Audio Processing
Advanced DSP includes adaptive echo cancellation, noise reduction, automatic tracking, automatic gain control, automatic room EQ, and dereverberation for crystal-clear audio in any environment.

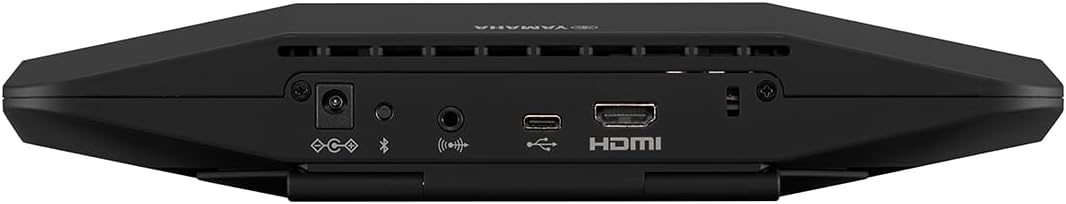

Easy Launch and Universal Connectivity
The CS-500 recognizes users entering the room and can automatically wake up the display via HDMI-CEC. All functionalities (audio, camera, and display via DisplayLink) connect to your laptop with just one USB cable. Compatible with all popular UC software platforms including Microsoft Teams, Zoom, and more.
-
USB Type-C: Single-cable connection for video, audio, and display (5m cable included)
-
HDMI: Connection to TV or monitor (2m cable included)
-
Bluetooth: Wireless connection for mobile devices
-
Wi-Fi: Network connectivity for time sync and management
-
3.5mm audio output: Analog audio connection

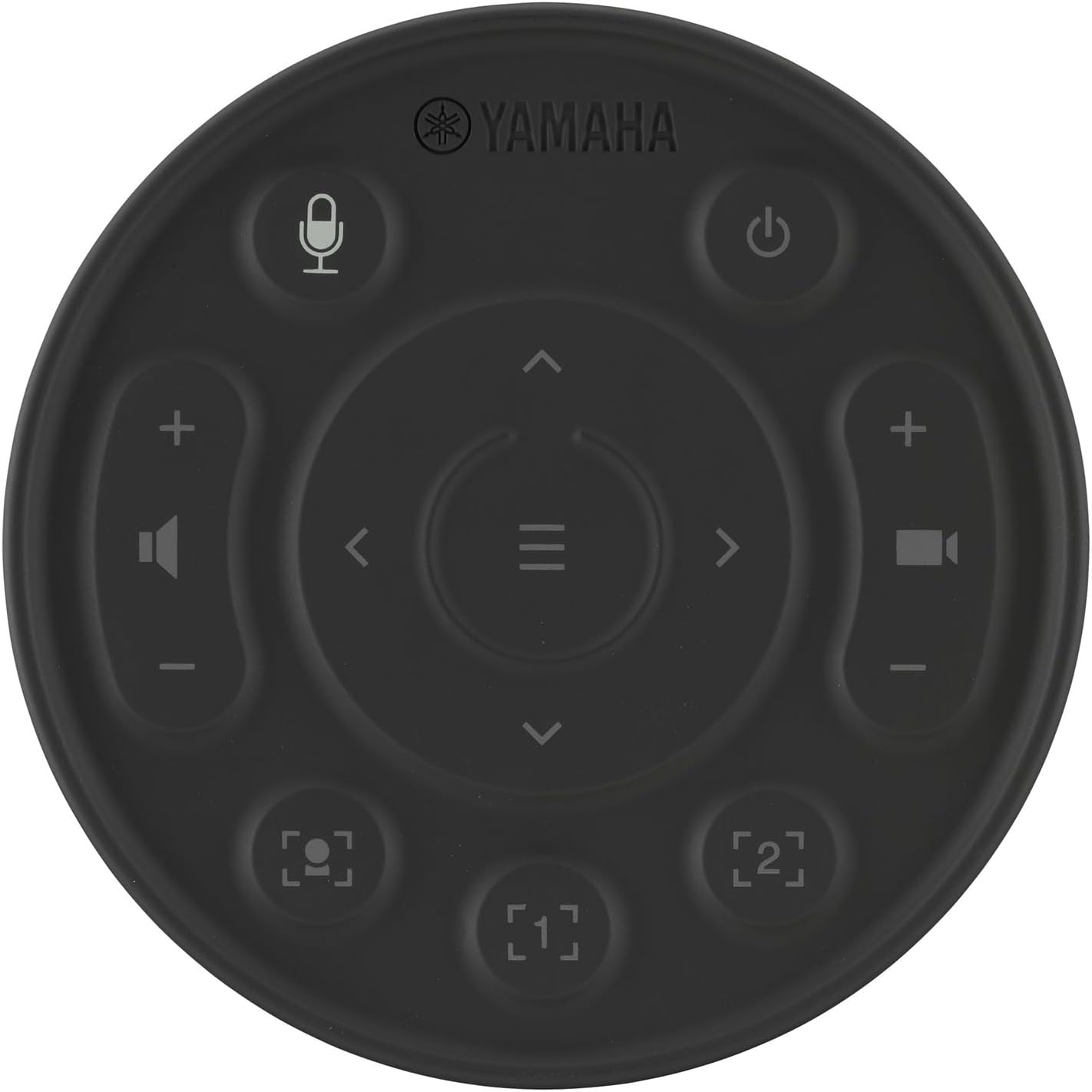

Multifunction Remote Control
The included wireless remote control features a large mute button on top for simple call muting, with advanced controls underneath for on-screen display interaction and manual control of camera, audio, and feature activation.
Flexible Installation Options
Supplied with a stand for mounting on top of a TV or monitor. Optional wall mounting bracket and screen mount bracket available for wall installation.
What's in the Box
- Yamaha CS-500 Video Collaboration System
- Multifunction Remote Control (RC-RBT1)
- 2 × Coin Battery (CR2032)
- USB 2.0 Cable (Type C-A, 5m / 16.4 ft)
- HDMI Cable (2m / 6.6 ft)
- Lens Cap
- Cable Tie
- AC Adapter with Power Cord (CW2002100)
- Read This First
- Safety Guide
Full Specifications
General
| Product Type |
Video Conference System |
| Dimensions (W × D × H) |
261mm × 76mm × 51mm |
| Weight |
0.6 kg |
| Power Requirements |
AC 100-240V (50/60 Hz) |
| Maximum Power Consumption |
15.0W |
Camera
| Resolution |
8-megapixel (4K) |
| Field of View |
120 degrees |
| Focus Range |
0.5m (1.6 ft) to infinity |
| Maximum Zoom Ratio |
5x |
| Smart Framing Modes |
Group, Individual, Speaker Tracking |
Microphone
| Element Type |
6 × MEMS |
| Pickup Angle |
120 degrees |
| Pickup Range |
6m (19.6 ft) beamforming OFF, 3m (9.8 ft) beamforming ON |
| Frequency Response |
100 Hz to 16 kHz |
| Features |
Face Focus Beamforming, Echo Cancellation, Noise Reduction |
Connectivity
| USB |
USB Type-C |
| HDMI |
HDMI output (with CEC support) |
| Bluetooth |
Built-in |
| Wi-Fi |
Built-in |
| Audio Output |
3.5mm analog jack |
Operating Environment
| Temperature |
0°C to 40°C |
| Humidity |
20% to 85% (non-condensing) |
Storage Environment
| Temperature |
-20°C to 60°C |
| Humidity |
20% to 85% (non-condensing) |
Specifications are sourced from the manufacturer product page and may be updated.
