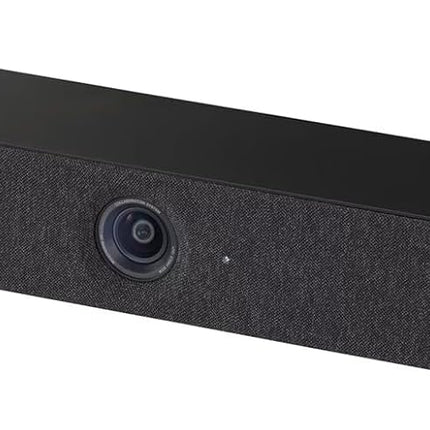

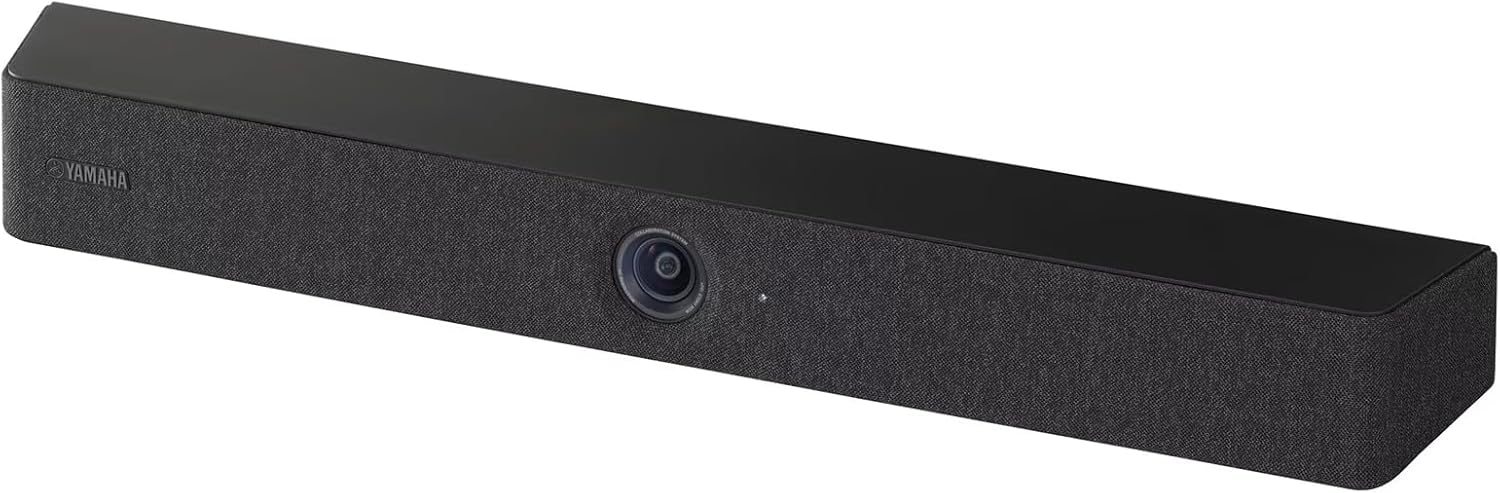

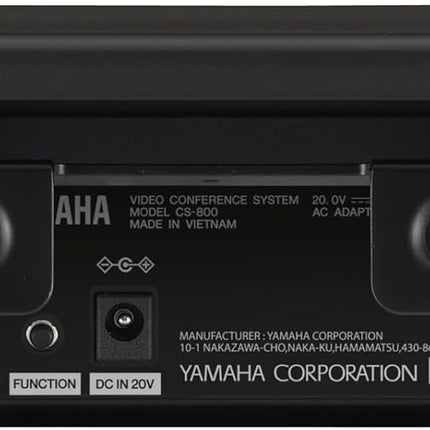

Yamaha CS-800 4K Video Conferencing Soundbar with AI Smart Framing
The Yamaha CS-800 is an all-in-one video collaboration system that combines a 4K camera, Hexa beamforming microphone array, and full-range speaker into a single compact unit designed for huddle rooms and small meeting spaces. With SoundCap Eye AI technology, advanced audio processing, and smart framing capabilities, the CS-800 delivers seamless, professional video conferencing experiences with just a single USB connection.
Revolutionary SoundCap Eye Technology
The CS-800 features Yamaha's proprietary SoundCap Eye technology, which uses positioning data from both the 4K camera and Hexa-Microphone array to pinpoint participant locations with unprecedented accuracy. This dual-sensor approach enables three key functions:
-
Face Focus Beamforming: Tracks faces with AI and focuses audio beams on speakers while rejecting background noise
-
Self-Silence: Automatically mutes the microphone when participants aren't speaking using Human Voice Activity Detection (HVAD)
-
Self-Volume Balancer: Adjusts speaker volume automatically according to ambient noise levels
4K Camera with Smart Framing
The integrated 8-megapixel 4K camera captures stunning video at 30 fps with a 120-degree field of view and 5x digital zoom. Smart Framing offers three tracking modes:
-
Group Mode: Frames all in-person participants
-
Speaker Mode: Automatically tracks and frames the active speaker
-
Individual Mode: Frames a specific participant
The camera provides a focus range from 0.5 meters to infinity and delivers maximum framing distance of up to 4.5 meters (nearly 15 feet).
Advanced Audio Performance
Six MEMS microphones arranged in a hexagonal array create a 3-dimensional audio beam that captures voices with exceptional clarity. The microphone covers a 120-degree pickup angle up to 6 meters (19.6 feet) with standard beamforming, or 3 meters (9.8 feet) with Face Focus Beamforming enabled.
The built-in full-range speaker delivers 90 dB SPL at 1 meter with a frequency response of 100 Hz to 20 kHz, providing clear audio output for all participants. Advanced DSP includes adaptive echo cancellation, noise reduction, automatic tracking, automatic gain control, automatic room EQ, and dereverberation.
Universal Connectivity
-
USB Type-C: Single-cable connection transfers audio, video, and display data
-
HDMI: Connects to displays with HDMI-CEC auto wake-up support
-
Bluetooth: Wireless device pairing and audio-only calling
-
Wi-Fi: Network connectivity for time synchronization
The CS-800 is compatible with all major unified communications platforms including Zoom, Microsoft Teams, and more. Supports Windows 10/11, macOS 10.15+, and ChromeOS.
Easy Launch and Installation
The CS-800 recognizes users entering the room and can automatically wake up connected displays via HDMI-CEC. An on-screen guide explains how to use the room technology and start meetings. DisplayLink technology allows a single USB connection to handle audio, camera, and display functions simultaneously.
Multiple mounting options are included: table stand, wall mounting bracket, and optional VESA-compatible monitor mounting solutions for maximum installation flexibility.
What's in the Box
- Yamaha CS-800 Video Soundbar
- AC Adapter with Power Cord

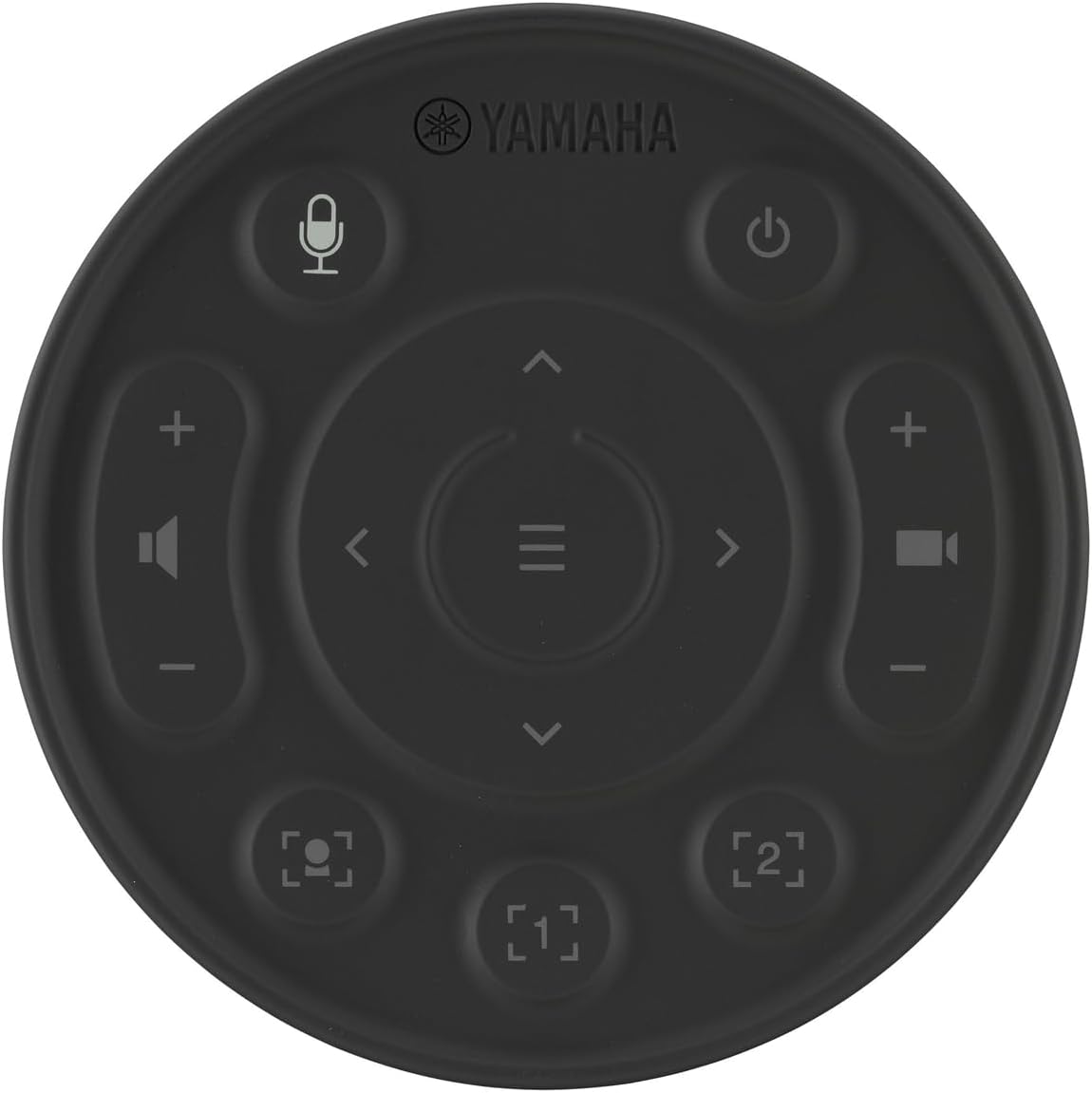

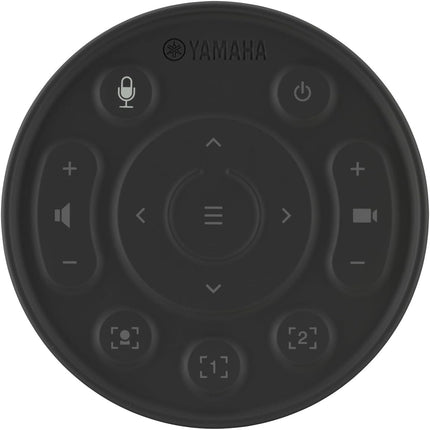

- Multifunction Remote Control
- USB-C to USB-A Cable (5 m / 16.4 ft)
- HDMI Cable (2 m / 6.5 ft)
- Wall Mounting Bracket

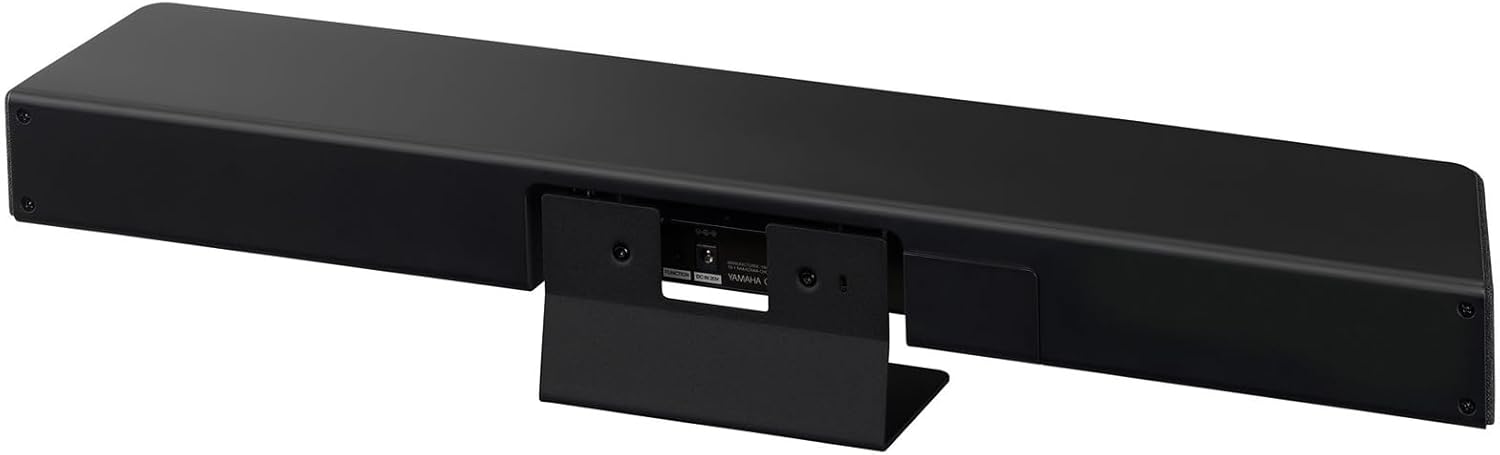

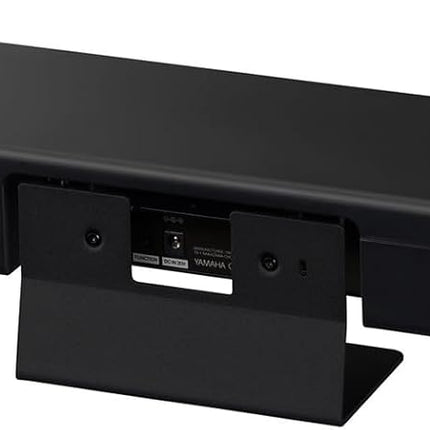

- Table Stand
- Lens Cap
- Terminal Cover
- 2 Coin Batteries (CR2032)
- Mounting Screws and Hexagonal Wrench
- Documentation (Quick Guide, Safety Guide)
Full Specifications
General
| Product Type |
Video Conference System |
| Dimensions (W × D × H) |
620 mm × 90 mm × 70 mm (24.4" × 3.5" × 2.8") |
| Weight |
1.7 kg (3.75 lbs) |
| Power Supply |
100-240 V AC (50/60 Hz) |
| Maximum Power Consumption |
42 W |
Camera
| Sensor |
8-megapixel CMOS (4K) |
| Resolution |
UHD 4K (3840 × 2160) at 30 fps |
| Field of View |
120 degrees |
| Focus Range |
0.5 m (1.6 ft) to infinity |
| Zoom |
5x digital zoom |
| Smart Framing Modes |
Group, Individual, Speaker tracking |
| Maximum Framing Distance |
4.5 m (14.8 ft) |
Microphone
| Type |
6 × MEMS microphones (Hexa array) |
| Pickup Pattern |
Beamforming with Face Focus |
| Pickup Angle |
120 degrees |
| Pickup Distance |
Up to 6 m (19.6 ft) standard / 3 m (9.8 ft) with Face Focus |
| Frequency Response |
100 Hz to 16 kHz |
| Audio Processing |
Echo cancellation, noise reduction, auto tracking, AGC, room EQ, dereverberation |
Speaker
| Type |
Built-in full-range speaker |
| Maximum SPL |
90 dB at 1 meter |
| Frequency Response |
100 Hz to 20 kHz |
| Power Output |
42 W RMS |
Connectivity
| USB |
USB 2.0 Type-C (video, audio, control) |
| HDMI |
1 × HDMI output (with CEC support) |
| Bluetooth |
Yes (device pairing and audio calling) |
| Wi-Fi |
Wireless LAN |
Compatibility
| Operating Systems |
Windows 10/11, macOS 10.15+, ChromeOS |
| UC Platforms |
Zoom certified, Microsoft Teams, and all major platforms |
| Video Encoding |
MJPEG, YUY2 |
Environmental
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
20% to 85% (non-condensing) |
| Storage Temperature |
-20°C to 60°C |
Installation
| Mounting Options |
Table stand, wall mount, optional VESA TV mount |
| Remote Control |
Wireless with power, mute, volume, PTZ, smart framing, presets |
| Indicators |
Multi-color status LED |
Warranty
| Warranty Period |
1 year limited warranty |
Specifications are sourced from the manufacturer product page and may be updated.
