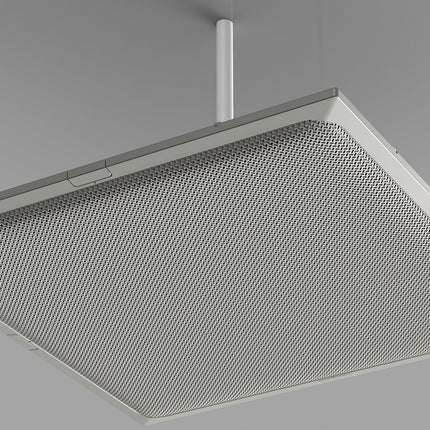

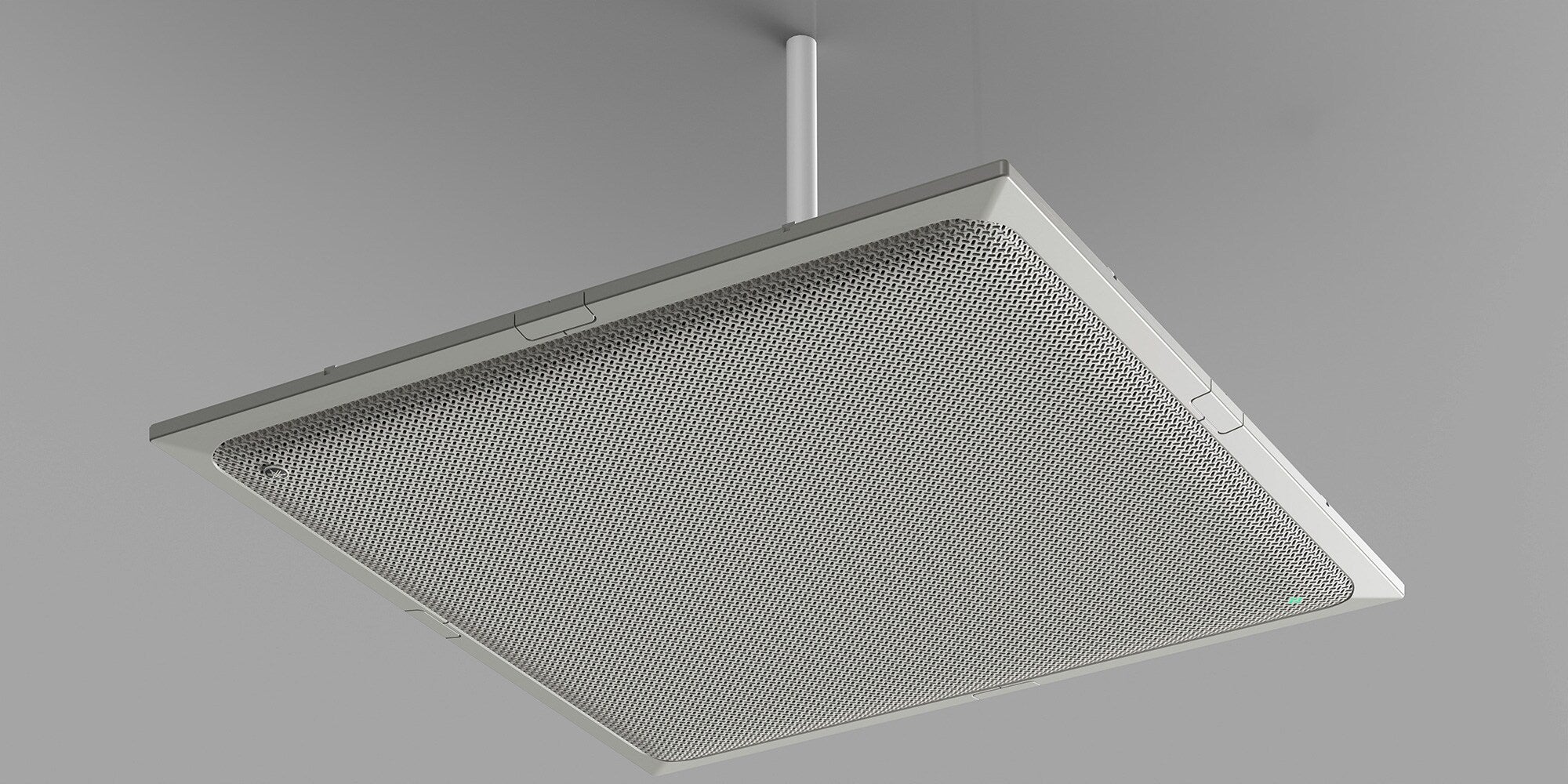

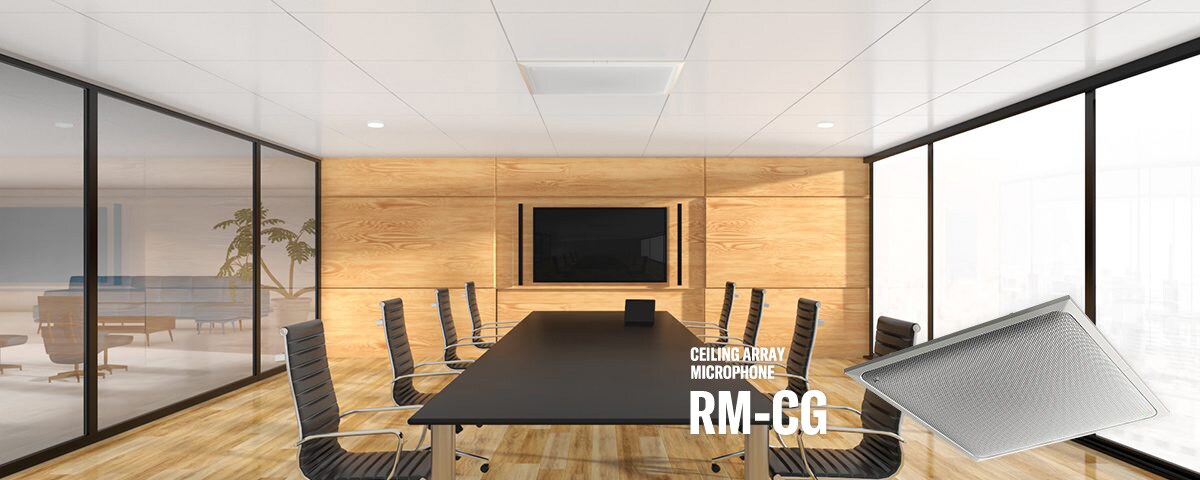

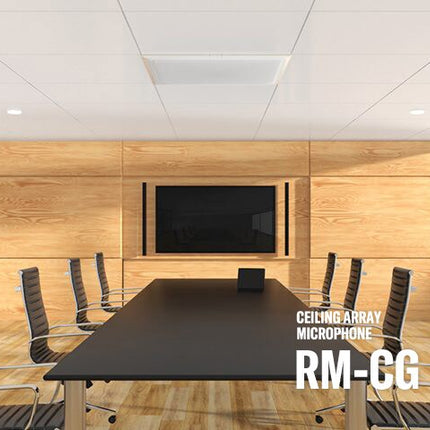

Yamaha RM-CG ADECIA Ceiling Array Microphone with Multi-Beam Tracking and Dante
The Yamaha RM-CG is an advanced beamforming ceiling array microphone designed for conference rooms, classrooms, and multipurpose spaces. Part of the ADECIA conferencing solution, it features four auto-tracking beams that dynamically follow multiple speakers simultaneously, ensuring crystal-clear voice capture even in challenging acoustic environments. With Dante audio networking and PoE+ connectivity, the RM-CG simplifies installation by using a single Cat 5e or Cat 6 cable for both power and data transmission.
Multi-Beam Tracking Technology
The RM-CG's innovative Multi-Beam Tracking technology scans for human voices and forms up to four beams simultaneously to track speakers in real-time. This ensures natural conversation capture whether participants are seated, standing, or moving around the room.
-
Dynamic Voice Tracking: Automatically detects and follows active speakers without manual adjustment
-
Customizable Tracking Zones: Pre-set beam-tracking areas using the web UI to optimize audio pickup
-
Human Voice Activity Detection: Intelligently blocks background noise and focuses on speech
Advanced Audio Processing
Yamaha has integrated several sophisticated audio technologies to ensure maximum voice intelligibility:
-
Adaptive Echo Canceller: Constantly scans the environment to deliver echo-free audio streams
-
Automatic Gain Control: Sets optimal gain for each voice automatically
-
Noise Reduction: Removes environmental noise like projector fans and air conditioning
-
Dereverberation: Mitigates the effect of windows, bare walls, and reflective surfaces
-
Parametric EQ: Fine-tune audio response for your specific room acoustics
Professional Dante Connectivity
The RM-CG features Dante audio networking with 1 in/2 out channels, enabling seamless integration into professional AV systems. A single PoE+ (IEEE 802.3af) connection provides both power and audio/control signals, eliminating troublesome wiring.
-

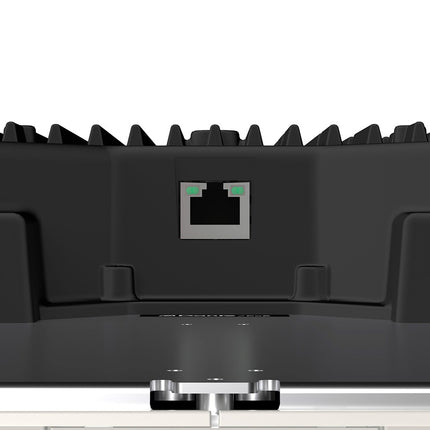

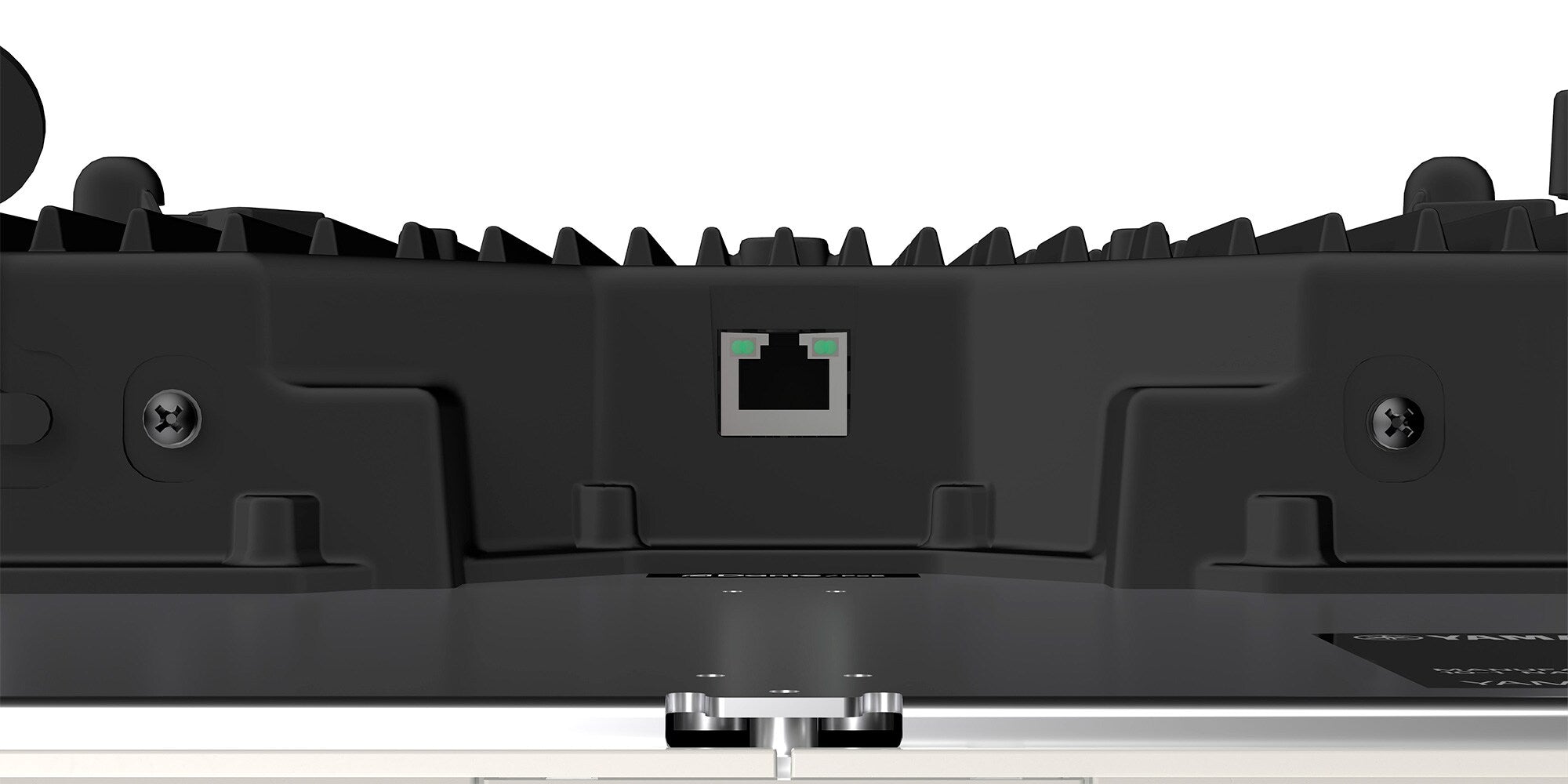

Network Audio: Dante audio/control via RJ-45 connection
-
PoE+ Powered: Single cable for power and data (Cat 5e or higher recommended)
-
Low Latency: 22 ms in low-latency mode, 58 ms including full signal processing
-
Web UI: Configure and control the microphone via any web browser
Flexible Installation Options
The RM-CG supports three mounting methods to accommodate various ceiling configurations:
-
Ceiling Mount: Standard mounting for solid ceilings
-
Wire Mount: Suspend from wires in drop ceiling installations
-

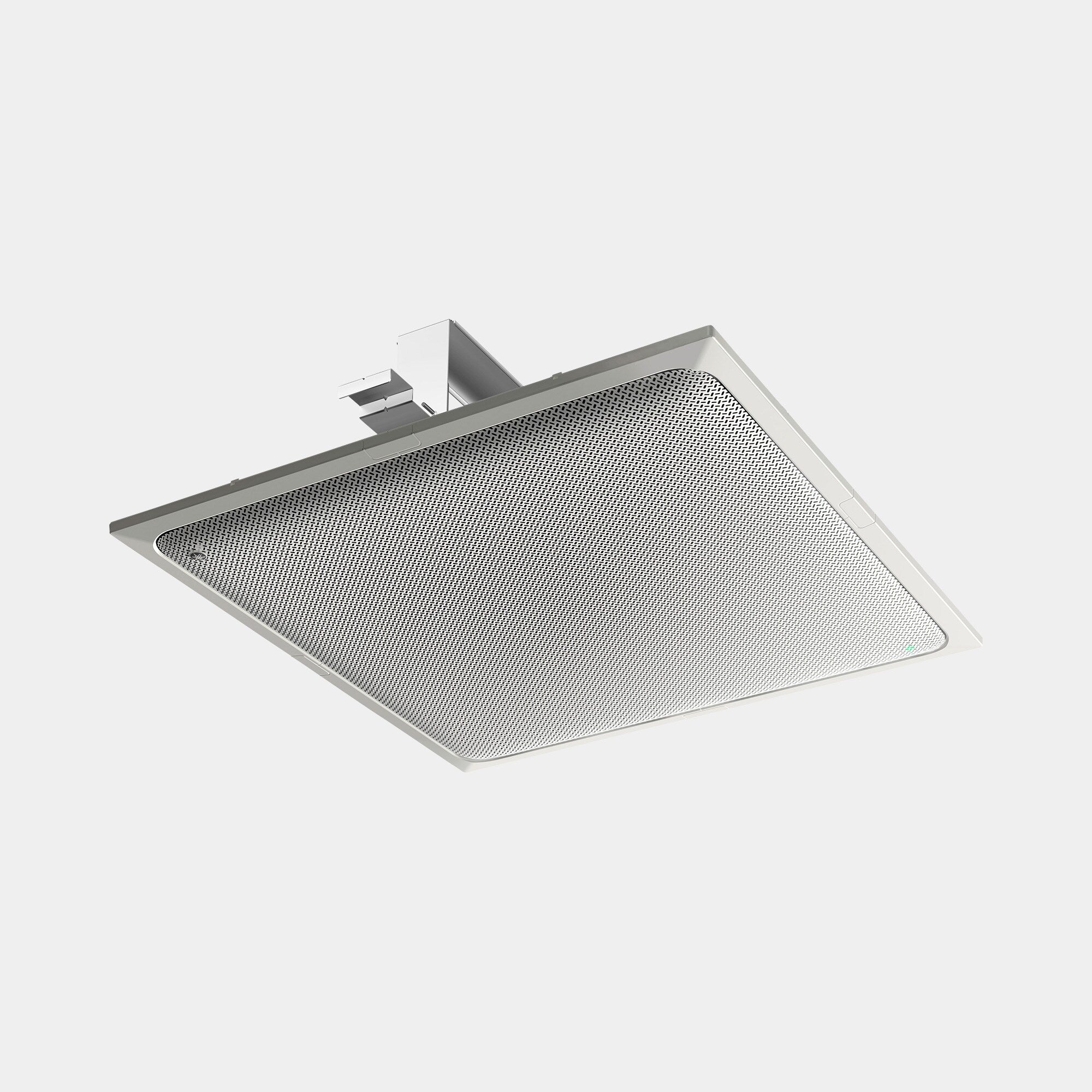

VESA Mount: Compatible with VESA mounting brackets for versatile placement
ADECIA System Integration
When paired with the Yamaha RM-CR Remote Conference Processor (sold separately), the RM-CG enables automatic detection and configuration, streamlining setup and optimizing audio for your room environment.
-
Auto Design & Setup: System automatically detects components and configures devices
-
Voice Lift: Enables clear communication in large spaces using ceiling speakers
-
Camera Tracking: Provides voice tracking data to compatible camera systems
What's in the Box
- Yamaha RM-CG Ceiling Array Microphone (White)
- Grille
- Mounting screws for grille (M3 × 8 mm) × 5
- Screw covers × 4
- Cable tie
- Terminal cover
- Safety wire
- U-shaped bracket
- Mounting screws for U-shaped bracket (M4 × 20 mm) × 5
- C-ring
- Mounting screws for C-ring × 2
- Cutout template
- Temporary mounting brackets × 2
- Installation Manual
Full Specifications
General
| Description |
Ceiling Array Microphone |
| Colour |
White |
| Dimensions (W × D × H) |
560 mm × 560 mm × 90 mm (including protrusions/microphone panel: H22 mm) |
| Weight |
5.6 kg (including grille) |
| Mounting Options |
Ceiling Mount, Wire Mount, VESA Mount |
| Indicators |
Front indicator (Mute/Unmute & Status), Network port indicator |
Audio Specifications
| Frequency Response |
160 Hz - 16 kHz (-10 dB) |
| Sampling Rate |
48 kHz |
| Bit Depth |
24 bit |
| Latency |
22 ms (low-latency mode), 58 ms (including signal processing) |
| Audio I/O |
Dante 1 in/2 out (In1=AEC reference signal / Out1=output of beam mix, Out2=output of beam mix simple processed) |
| Maximum Input Level of SPL (0 dBFS) |
117.8 dB SPL |
| Self Noise |
-0.8 dBA SPL |
| SNR (Ref. 94 dB SPL at 1 kHz) |
94.8 dBA |
| Sensitivity |
-23.8 dBFS/Pa |
| Dynamic Range |
118.6 dBA |
| Signal Processing |
Multi-Beam Tracking, Adaptive Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain Adjustment |
| Polar Pattern |
Cardioid (beamforming) |
Network
| Ethernet |
Dante Audio/Dante Control, Remote Control, Web UI, PoE+ |
| Connector |
RJ-45 |
| Cable Requirements |
Cat 5e or higher (STP Recommended) |
Power
| Power Requirements |
PoE (IEEE 802.3af), DC 48V |
| Maximum Power Consumption |
7.2 W |
Environmental
| Operating Temperature |
0°C - 40°C |
| Operating Humidity |
30% - 90% (no condensation) |
| Storage Temperature |
-20°C - 60°C |
| Storage Humidity |
20% - 90% (no condensation) |
System Integration
| Maximum Device Number with RM-CR |
14 (without VXL1-16P, up to 16) / 16 (ADECIA V3.0 or later) |
| Compatible Processor |
Yamaha RM-CR Remote Conference Processor (sold separately) |
Specifications are sourced from the manufacturer product page and may be updated.
