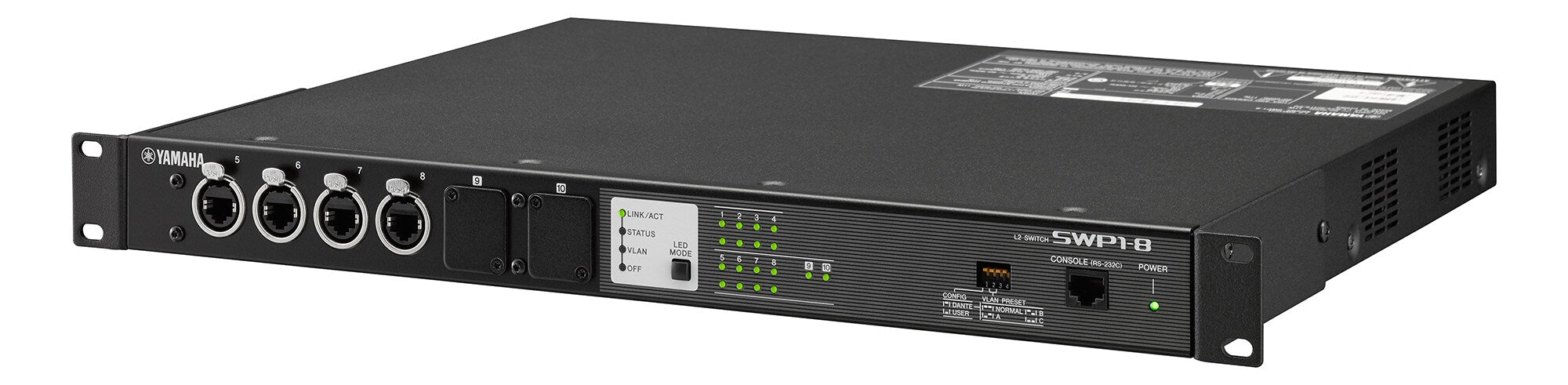

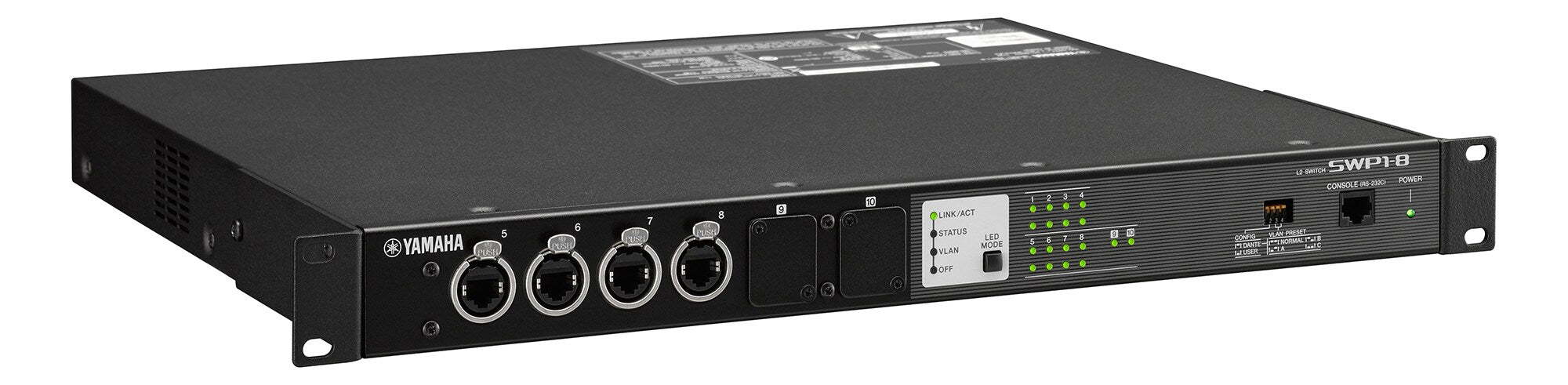

Yamaha SWP1-8 8-Port Gigabit Layer 2 Network Switch for Dante Audio

    Description

    Yamaha SWP1-8 8-Port Gigabit Layer 2 Network Switch for Dante Audio

    The Yamaha SWP1-8 is a professional Layer 2 Gigabit network switch specifically designed for Dante audio network systems. Featuring eight etherCON ports and two optional optical module slots, this switch delivers rock-solid reliability for live sound and installation applications. With simple DIP switch Dante optimization and the included Yamaha LAN Monitor software, complex network setup is now easy for anyone to accomplish.

    Dante Optimization Made Simple

    The SWP1-8 takes the complexity out of audio networking. One DIP switch setting optimizes the entire switch for Dante operation, eliminating the need for IT expertise. The dedicated Yamaha LAN Monitor application provides comprehensive network visibility, allowing you to monitor topology, port status, bandwidth utilization, and Dante device health from a single screen.

    • DIP Switch Presets: Three VLAN presets can be selected via DIP switch, plus a USER mode for fully customized VLAN setup
    • Network Visibility: Real-time monitoring of network topology, connection status, and bandwidth at each port
    • Snapshot Function: Capture normal network status and set alarms to warn of any parameter changes
    • Dante Controller Integration: Launch Dante Controller with one click from Yamaha LAN Monitor

    Built for Live Sound Reliability

    Unlike conventional switches with standard RJ45 connectors, the SWP1-8 features durable etherCON connectors (4 front, 4 rear) that are directly compatible with Yamaha CL/QL series consoles and other Dante-capable devices. The switch supports Rapid Spanning Tree Protocol (RSTP) for redundant connections and includes two optional optical module slots for multimode fiber expansion.

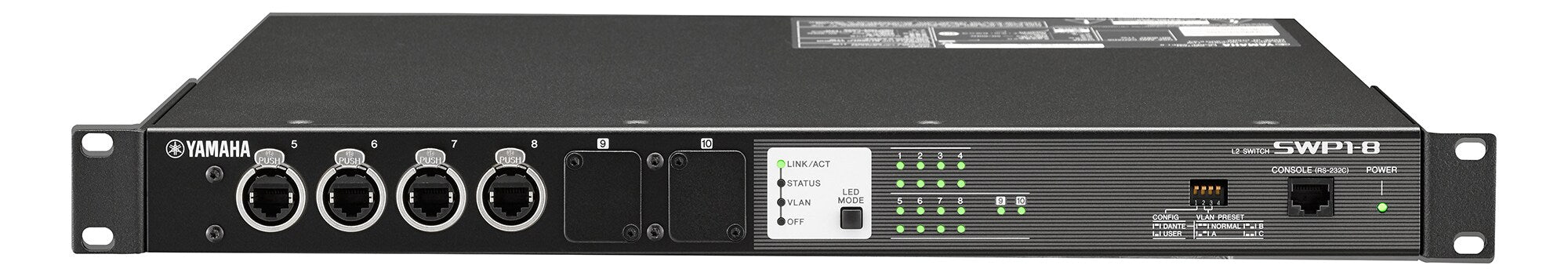

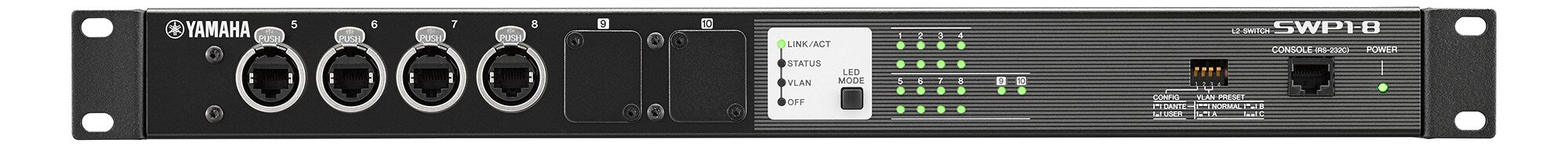

    • etherCON Connectors: 4 front and 4 rear for secure, lockable connections

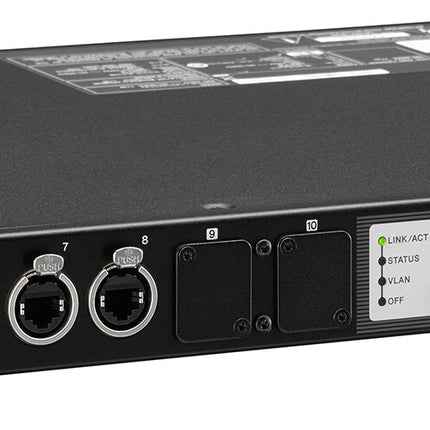

    • Optional Optical Slots: 2 front slots for MMF-SWP1 multimode fiber modules
    • Fanless Design: Quiet operation with 11W power consumption
    • Redundant Power: XLR-4-32 type EXT DC INPUT for 24VDC redundant power supply
    • Rack Mountable: Standard 1U 19-inch rack mounting

    Professional Features

    • Port Configuration: 8 × 10/100/1000 etherCON ports
    • VLAN Support: Up to 256 VLANs (VLAN ID 1-4094)
    • MAC Address Table: 16,384 entries

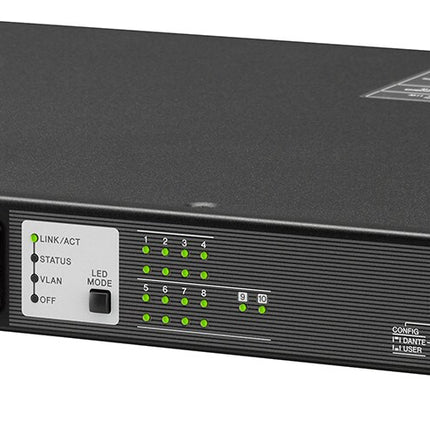

    • LED Indicators: Front panel POWER, LED MODE × 4, PORT × 8 × 2, SFP × 2
    • LED Mode Button: Switch PORT lamps between LINK/ACT-SPEED, STATUS, or VLAN indication
    • Access Control: ACL (Access Control List) and loop protection

    Connectivity

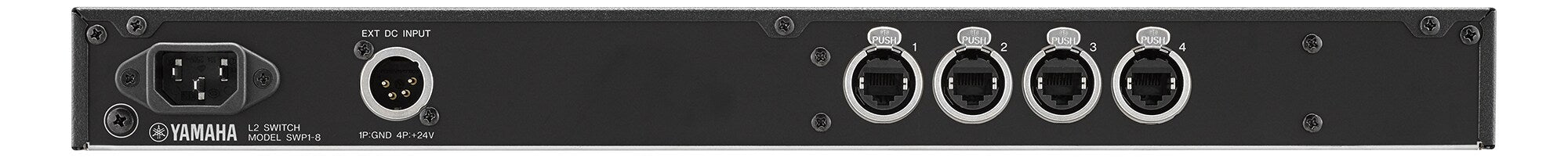

    • 8 × etherCON Gigabit Ethernet ports (4 front / 4 rear)
    • 2 × Optional SFP slots for 1000BASE-SX multimode fiber (modules sold separately)
    • AC IN power inlet with V-lock (locking type)
    • EXT DC INPUT: XLR-4-32 type for 24VDC ± 2V, 1A redundant power

    What's in the Box

    • Yamaha SWP1-8 Network Switch
    • AC Power Cable
    • User Manual
    • Rack Mount Hardware

    Full Specifications

    Network

    Port Configuration 8 × 10/100/1000 Gigabit Ethernet (etherCON)
    Optional SFP Ports 2 × 1000BASE-SX (opticalCON, modules not included)
    Switch Type Layer 2 Gigabit Managed Switch
    VLAN Support 256 VLANs (VLAN ID 1-4094)
    MAC Address Table 16,384 entries
    Queue Support 8 queues
    Redundancy Rapid Spanning Tree Protocol (RSTP)

    Power

    AC Power Input AC 100V-240V, 50/60Hz (locking type V-lock)
    DC Power Input 24VDC ± 2V, 1A via XLR-4-32 type connector
    Power Consumption 11W
    Cooling Fanless (silent operation)

    Physical

    Dimensions (W × H × D) 480 × 44 × 362 mm (18.9 × 1.7 × 14.2 inches)
    Weight 4.2 kg (9.3 lbs)
    Mounting 1U 19-inch rack mountable
    Construction Metal housing
    Certifications RoHS compliant

    Indicators

    Front Panel POWER, LED MODE × 4, PORT × 8 × 2, SFP × 2
    LED Modes LINK/ACT-SPEED, STATUS, or VLAN (switchable via LED MODE button)

    Software

    Management Software Yamaha LAN Monitor (Windows/Mac)
    Network Visibility Topology mapping, port status, bandwidth monitoring, Dante device monitoring
    Integration One-click launch of Dante Controller

    Specifications are sourced from the official manufacturer product page and may be updated.
