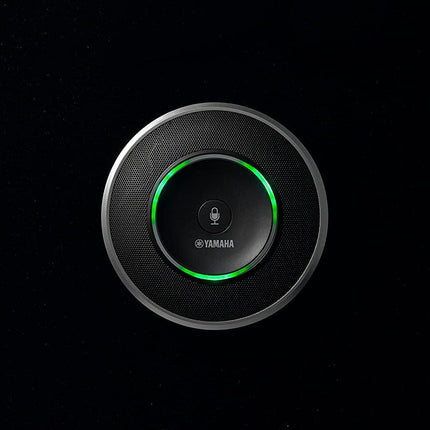

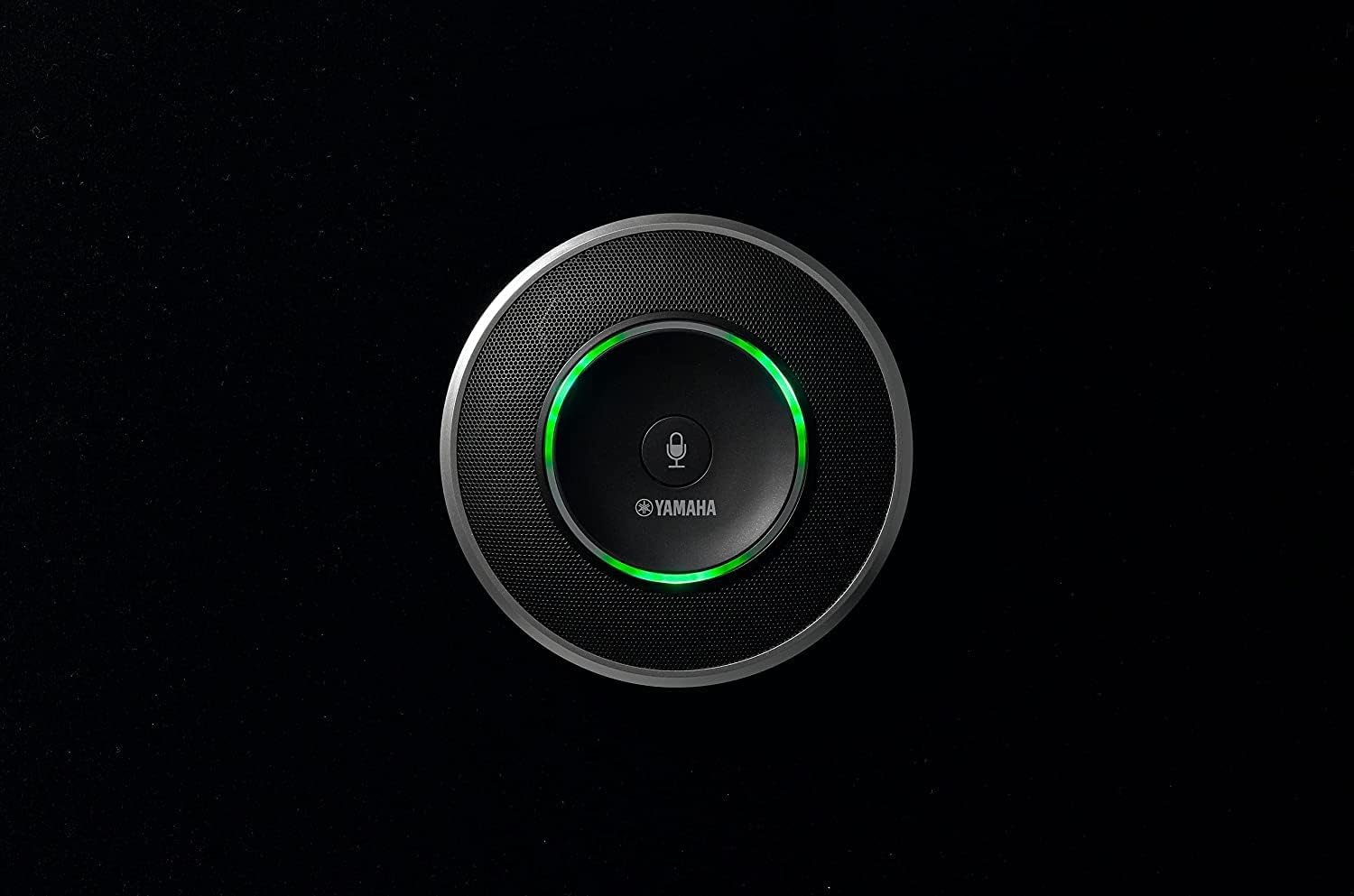

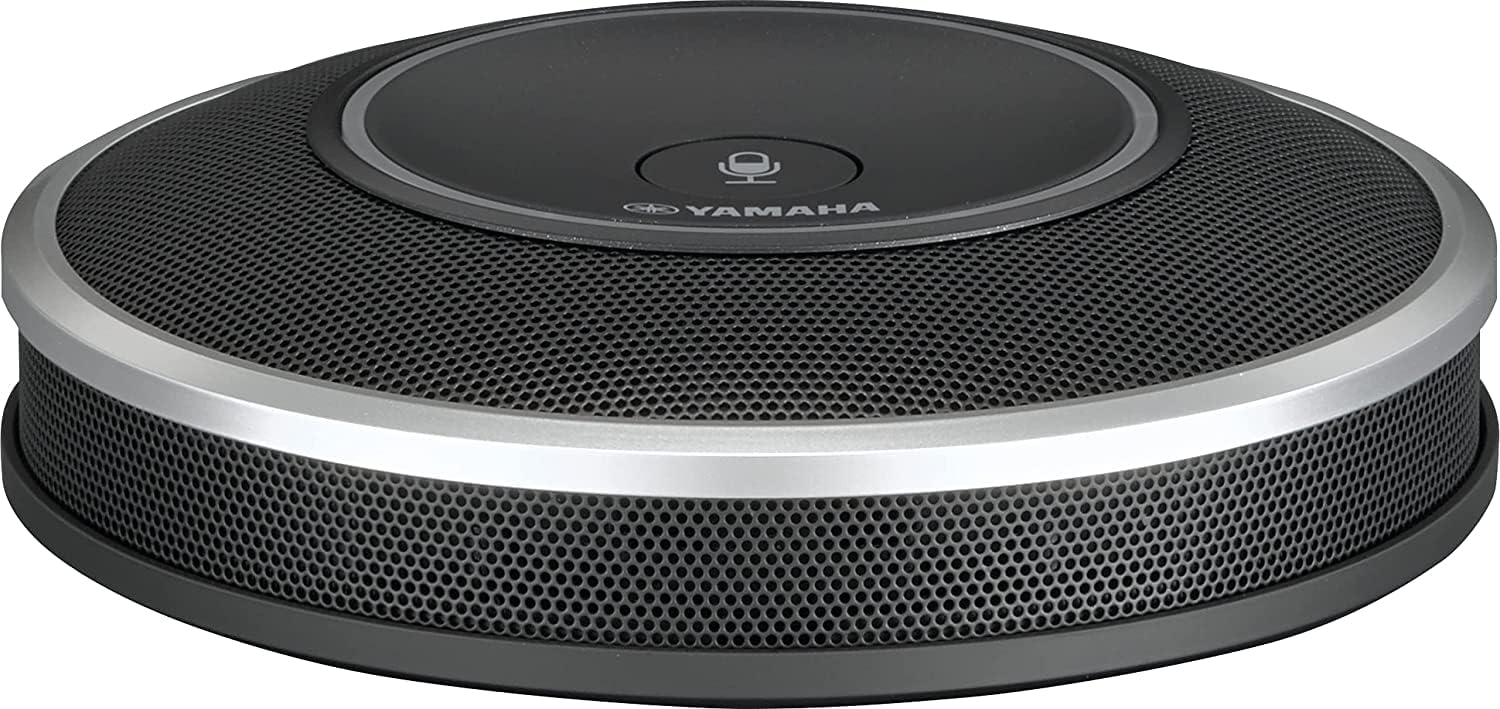

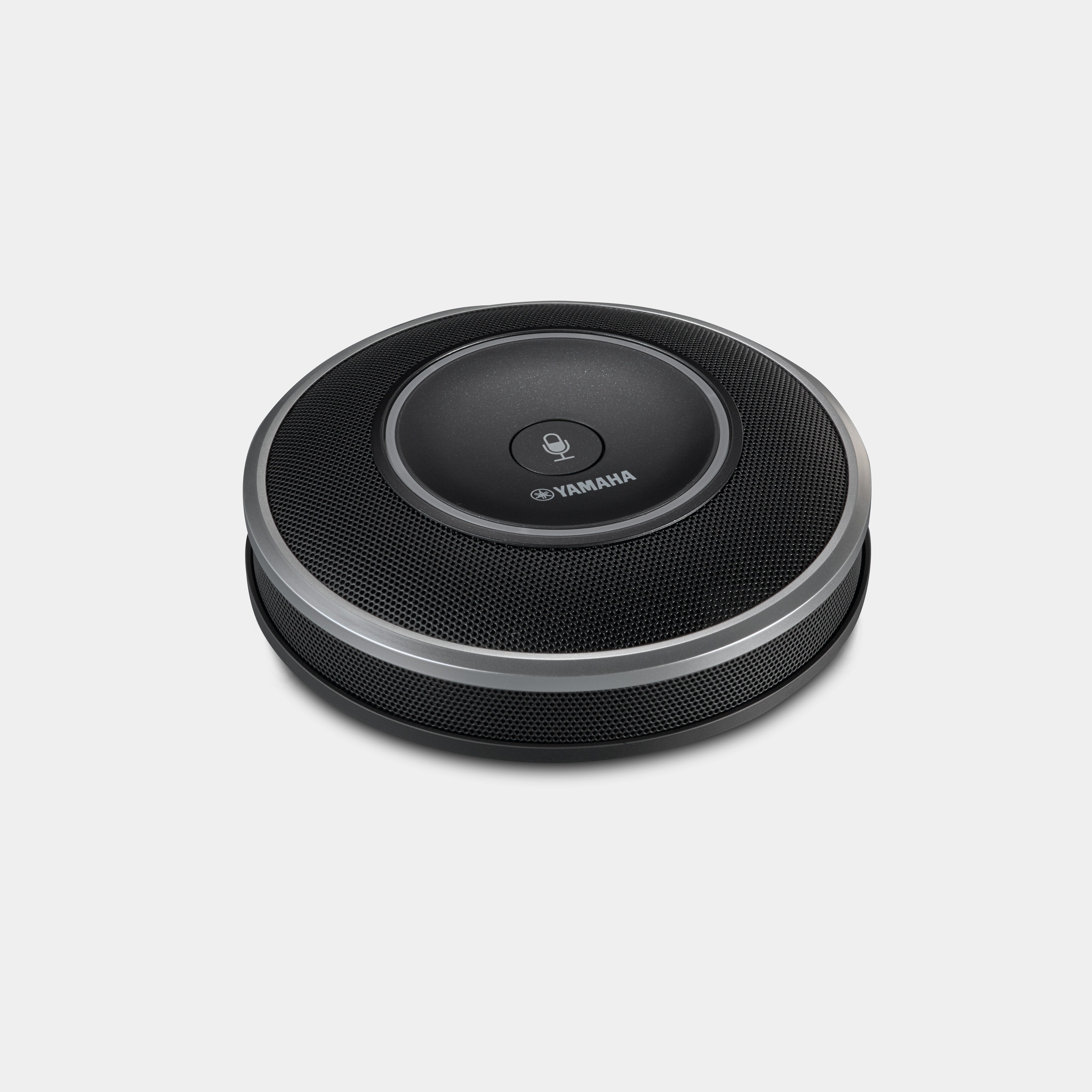

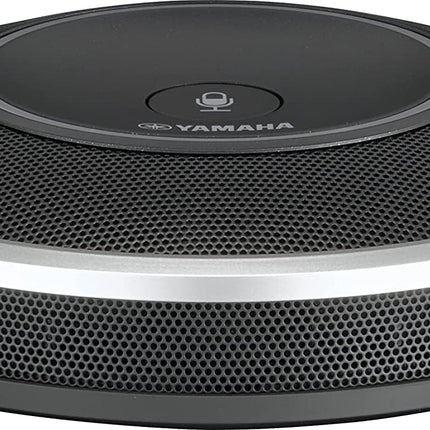

Yamaha YVC-MIC1000EX Omni-Directional Extension Microphone for YVC-1000
The Yamaha YVC-MIC1000EX is an optional extension microphone designed specifically for the YVC-1000 and YVC-1000MS unified communications speakerphone systems. Featuring an omni-directional pickup pattern with three internal unidirectional microphones and a frequency response of 100Hz to 20kHz, this extension microphone ensures crystal-clear voice capture across larger conference rooms and meeting spaces.
Key Features
-
Expandable Coverage: Add up to four YVC-MIC1000EX units to your YVC-1000 base system for a total of five microphones, providing comprehensive audio coverage for large conference rooms
-
Omni-directional Tabletop Design: Captures sound from all directions with three internal unidirectional microphones for optimal voice pickup
-
Daisy-Chain Connectivity: Wired connection allows easy daisy-chaining to existing YVC-1000 or YVC-1000MS base units
-
Wide Frequency Response: 100Hz to 20kHz bandwidth ensures natural and nuanced voice reproduction
-
Professional Build Quality: Metal and plastic construction in black finish complements professional meeting environments
-
Extended Cable Included: Comes with a 5-meter (16.4 ft) microphone cable for flexible placement
Seamless Integration
The YVC-MIC1000EX integrates seamlessly with Yamaha's YVC-1000 unified communications system, benefiting from the base unit's advanced audio processing technologies including Human Voice Activity Detection (HVAD), adaptive echo cancellation, noise reduction, and automatic room EQ. This ensures that every participant in your meeting is heard clearly, regardless of their position in the room.
Flexible Configuration
Whether you're setting up a small meeting room or a large boardroom with special table configurations, the YVC-MIC1000EX provides the scalability you need. The daisy-chain capability allows you to position microphones strategically around your meeting space, ensuring optimal coverage for all participants. The system works with various room sizes and layouts, making it ideal for corporate conference rooms, education facilities, and remote learning environments.
What's in the Box
- YVC-MIC1000EX Extension Microphone Unit
- Microphone Cable (5 m / 16.4 ft)
- User's Manual
Full Specifications
Audio
| Microphone Type |
Omni-directional (3 × unidirectional microphones) |
| Frequency Response |
100 Hz - 20 kHz |
| Pickup Range |
Recommended 3 m (9.8 ft), maximum 5 m (16.4 ft) per microphone |
Connectivity
| Input Terminal |
1 × RJ45 female (from microphone or base unit) |
| Output Terminal |
1 × RJ45 female (to base unit or next microphone) |
| Connection Type |
Wired, daisy-chainable |
| Cable Length |
5 m (16.4 ft) |
Physical
| Dimensions (W × H × D) |
136 × 36 × 136 mm (5.35 × 1.42 × 5.35 in) |
| Weight |
0.4 kg (0.9 lbs) |
| Color |
Black |
| Construction |
Metal / Plastic |
Environmental
| Operating Temperature |
0°C - 40°C (32°F - 104°F) |
| Operating Humidity |
20% - 85% (non-condensing) |
| Storage Temperature |
-20°C - 50°C (-4°F - 122°F) |
| Storage Humidity |
10% - 90% (non-condensing) |
Compatibility
| Compatible Systems |
Yamaha YVC-1000, YVC-1000MS |
| Maximum Units per System |
5 microphones total (1 included with base unit + 4 extension microphones) |
| Radio Failure Standard |
VCCI Class A |
Specifications are sourced from the manufacturer product page and may be updated. Note: If the YVC-MIC1000EX date of manufacture is December 2021 or later, firmware update of the YVC-1000 base unit is required.
